Highlead GC24688 Series Industrial Sewing Machines

  • Image 1
Price:
$7,499.40
SKU:
P3113SW77538
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

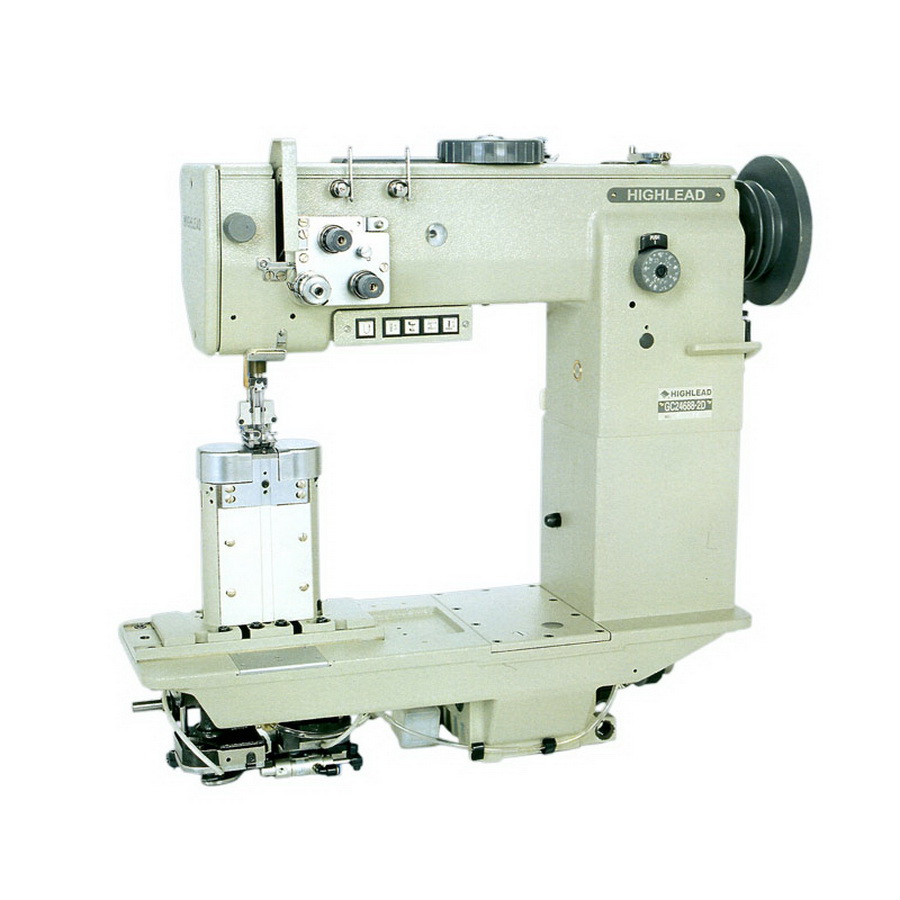

Highlead GC24688 Series Industrial Sewing Machines with Assembled Table and Motor

POST-BED HEAVY DUTY COMPOUND FEED LOCKSTITCHER WITH TRIMMER

Machines of series GC24688 come with automatic thread trimming, automatic backtacking, automatic foot lifting and automatic stitch regulation. A large easy to access dial on top of the sewing head allows for simple adjustment of the presser foot alternation amount (from 1 mm to 7 mm). Pneumatics are used for precise back tacking and foot lifting operations. Automatic lubrication allows for a smooth running and quiet operating piece of equipment. It is used to sew such items as automobile interiors, aircraft interiors, tents, umbrellas, luggage, sport bags and similar articles.

MODEL GC24688-1L-D

Two needle post bed complund feed split needle bar lockstitch sewing machine

MODEL GC24688-1R-D

Long arm two needle post bed compound feed split needle bar lockstitch sewing machine

MODEL GC24688-2-D

Post-bed twin-needle heavy duty compound feed lockstitcher with trimmer

Specifications and Model Comparison

CATEGORYGC24688-1LDGC24688-1RDGC24688-2-D
Max Sewing Speed 2400 rpm 2400 rpm 2400 rpm
Stitch length 0 - 9 mm 0 - 9 mm 0 - 9 mm
Needle bar stroke 34 mm 34 mm 34 mm
Presser foot lift By Hand: 10 mm; By Pneumatic: 16 mm By Hand: 10 mm; By Pneumatic: 16 mm By Hand: 10 mm; By Pneumatic: 16 mm
Needle Size DP x 35R 19# - 25# (Standard 23#) DP x 35R 19# - 25# (Standard 23#) DP x 35R 19# - 25# (Standard 23#)
Presser foot alternation 1 - 7 mm 1 - 7 mm 1 - 7 mm
Needle Gauge N/A N/A 8 mm (Standard) 10, 12 mm
Highness of post-bed 170 mm 170 mm 170 mm
Rotating hook Large vertical (1.6 times) Large vertical (1.6 times) Large vertical (1.6 times)
Auto presser foot lifter Pneumatic Pneumatic Pneumatic
Presser alternation adjuster Pneumatic Pneumatic Pneumatic
Safety Device Standard Standard Standard
Lubrication Auto lubricated Auto lubricated Auto lubricated
Motor 220V 750W Servo motor 220V 750W Servo motor 220V 750W Servo motor



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
