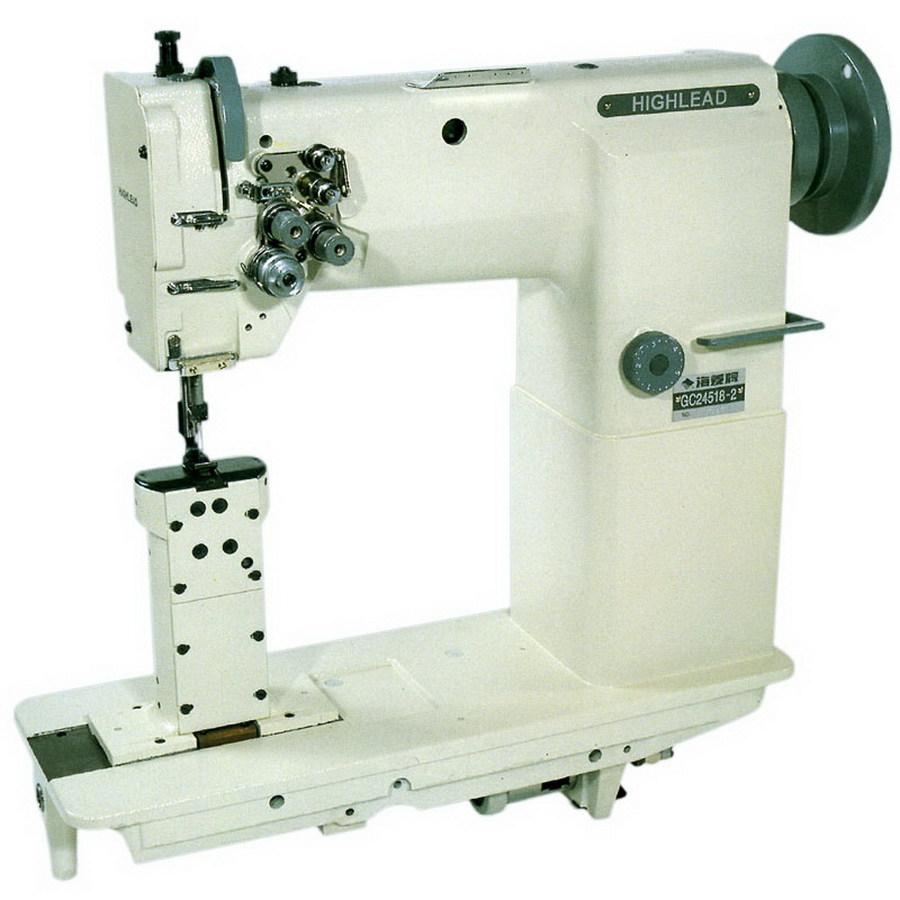

Highlead GC24518 Series Industrial Sewing Machines with Assembled Table and Motor

POST-BED NEEDLE BAR FEED LOCKSTITCH SEWING MACHINE

This needle feed post bed machine forms a double lockstitch in either single or double needle versions. A drive belt is used to drive the arm shaft and hook shaft. A dial type stitch regulator and reverse feeding lever make operating the machine easy. The 7 inch post bed allows ample working space to sew hard to reach areas, while the needle feed mechanism prevents material from slipping thereby ensuring excellent stitch quality. It can be used on such items as uniforms, slippers, soft sided shoes and similar articles.

Specifications and Model Comparison

CATEGORYGC24518-1GC24018-2GC24518-1DGC24518-2D
Max Sewing Speed 2500 rpm 2500 rpm 2500 rpm 2500 rpm
Stitch Length 0 - 5 mm 0 - 5 mm 0 - 5 mm 0 - 5 mm
Needle Bar Stroke 33.4 mm 33.4 mm 33.4 mm 33.4 mm
Presser Foot Lift By Hand: 7 mm; By Knee 10 mm By Hand: 7 mm; By Knee 10 mm By Hand: 7 mm; By Knee 10 mm By Hand: 7 mm; By Knee 10 mm
Needle Size DP x 5 11 #-14# DP x 5 11 #-14# DP x 5 11 #-14# DP x 5 11 #-14#
Needle gauge N/A 2 2.4 3.2 6.4 mm N/A 8 mm (Standard) Special 10 mm
Rotating Hook Vertical hook Vertical hook Vertical hook for trimming Vertical hook for trimming
Highness of post-bed 178 mm 178 mm 178 mm 178 mm
Lubrication Semi – auto lubricated Semi – auto lubricated Semi – auto lubricated Semi – auto lubricated
Motor 370 Clutch motor 370 Clutch motor 220V 450W Servo motor 220V 450W Servo motor



Compare models and choose your model in the dropdown below the add to cart.



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
