Consew 206RBL 30 30 inch Long Arm Machine with Assembled Table and Servo Motor

  • Image 1
Price:
$4,499.40
SKU:
P3113SW23429
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

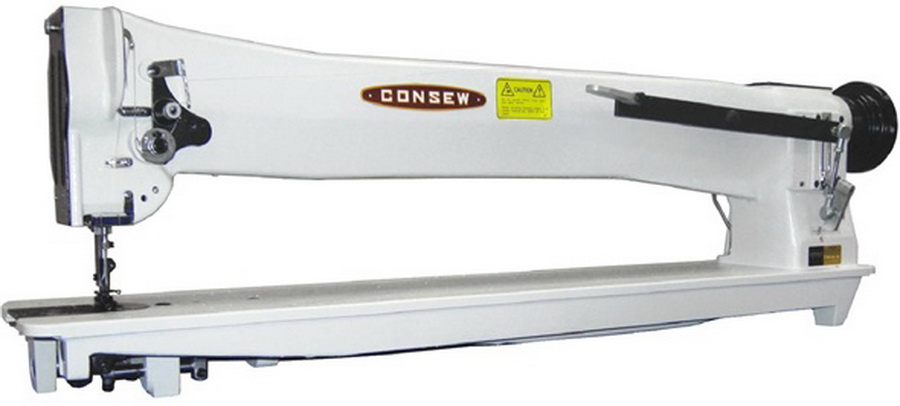

Consew 206RBL-30 30 inch Long Arm Machine

WITH ASSEMBLED TABLE AND SERVO MOTOR

The Consew 206RBL-30 Sewing Machine contains a variety of features the include, but not limited to: 30 inch Long Arm, heavy duty, single needle, lockstitch, triple feed (drop feed, needle feed and alternating (walking) presser feet) machines. Also included with this Consew long arm sewing machine is: Centralized Arm Lubrication, Reservoir-Oiled Hook with Micrometic Control Valve, Large Horizontal Axis Rotary Hook and Bobbin, Adjustable Reverse Feed, Locking Stitch Regulator, Safety Clutch.

Applications

  • For sewing medium to medium-heavy weight materials such as cloth, synthetics, vinyl, canvas, leather and various coated and laminated materials
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

Specifications

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 1800
  • Clearence Under Presser Foot: 916" (14mm)
  • Stitch Length: 2 ½ s.p.i. (10mm)
  • Work Space: 30" (762 mm)
  • Needle Used: 135 x 17
  • Stitch Type: 301
  • Hook: 18033

Features

  • Extra long stitch - 21/2 S.P.I. (10mm)
  • Large Bobbin. Bobbin can be changed without removing object being sewn
  • Thread release finger (for heavy thread)
  • High presser foot lift - 9/16" (14mm)
  • Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
  • All gear driven hook mechanism. Large horizontal axis hook
  • Safety clutch with push-button re-engagement
  • Adjustable reverse stitching can be same length as forward stitch
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
  • Walking feet, needles and other attachments interchangeable with Consew models 226R-2, 255RB-2
  • Needle plate, foot and feed dog can be changed for special operations
  • Standard attachments easily installed
  • Compound feed, walking foot mechanism insures even feeding of material
  • Locking stitch regulator prevents changes in stitch length from vibration

TABLE & SERVO MOTOR

This Package includes a Fully Assembled Table and a Servo Motor.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

SOME OTHER ADVANTAGES OF THE SERVO MOTOR INCLUDE:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed servo motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.

Warranty Information

5 YEAR LIMITED WARRANTY
