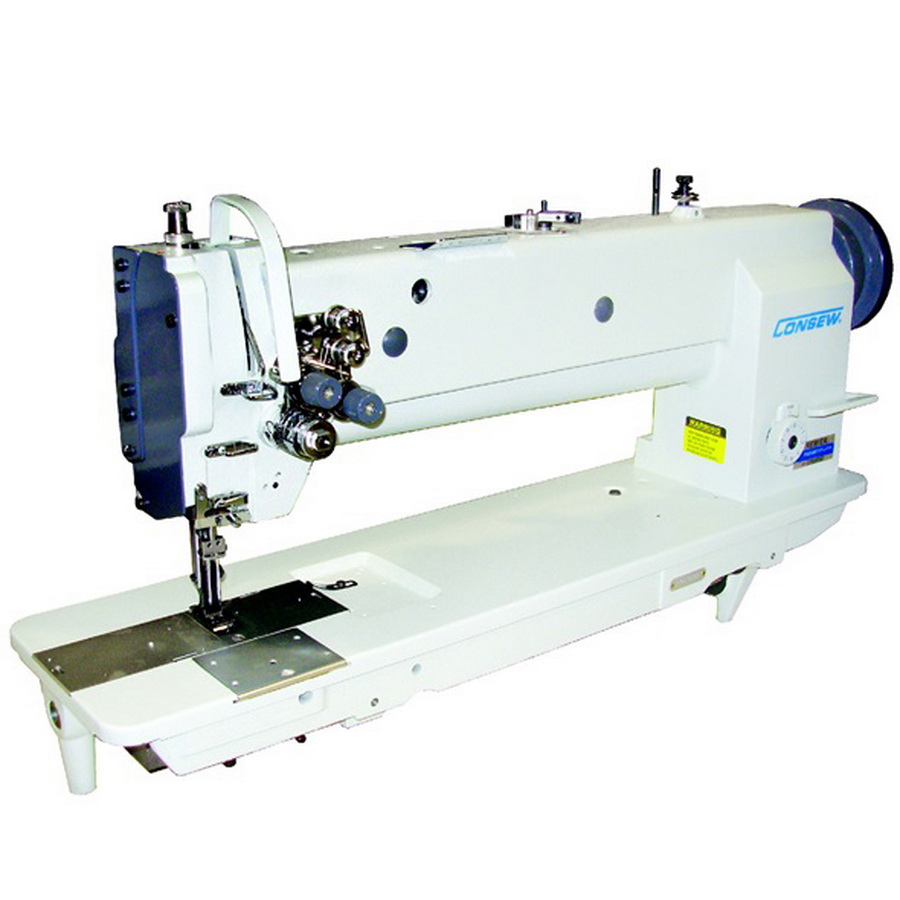

Consew Premier 2339RBL 18 Double Needle Long Arm With Assembled Table and Servo Motor

  • Image 1
Price:
$2,459.40
SKU:
P3113SW42607
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Consew Premier P2339RBL-18 Long Arm Machine

WITH ASSEMBLED TABLE AND SERVO MOTOR

The Consew P2339RBL-18 Long Arm Machine contains a variety of features the include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine..

Features

  • Double Needle
  • Long Arm with 18” Working Space
  • Oil Pump System with Adjustable Oil Flow
  • Upper Oil Glass Sight
  • Large Vertical Axis Automatically Oiled Hook
  • Barrel-type, Locking Stitch Regulator
  • Locking Stitch Regulator
  • Large Top-Loaded Bobbin
  • Reverse
  • Quick Tension Release
  • Safety Clutch
  • Locking Slide Plate for easy bobbin access.
  • Adjustable Take-Up Thread Guide for thread loop timing

Specifications

  • Speed, Max. (S.P.M.): 2000 (*Speed depends on thread, material and operation)
  • Presser Foot Lift:
    • By Hand - 5/16" (8 mm)
    • By Knee - 33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Max: 2.8 s.p.i. (9 mm)
  • Work Space: 18" x 4-1/4" (457 x 110 mm)
  • Working Height Under Arm: 4" (102 mm) maximum
  • Needle: 135 x 17 (x2)
  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: long Arm
  • Standard or Full Function: Standard Functions
  • Stitch Type: 301

TABLE & SERVO MOTOR

This Package includes a Fully Assembled Table and a Servo Motor.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

SOME OTHER ADVANTAGES OF THE SERVO MOTOR INCLUDE:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed servo motor. Upgrade to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.

Warranty Information

5 YEAR LIMITED WARRANTY
