Highlead GC24608 Series Industrial Sewing Machines

  • Image 1
Price:
$2,159.40
SKU:
P3113SW87873
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

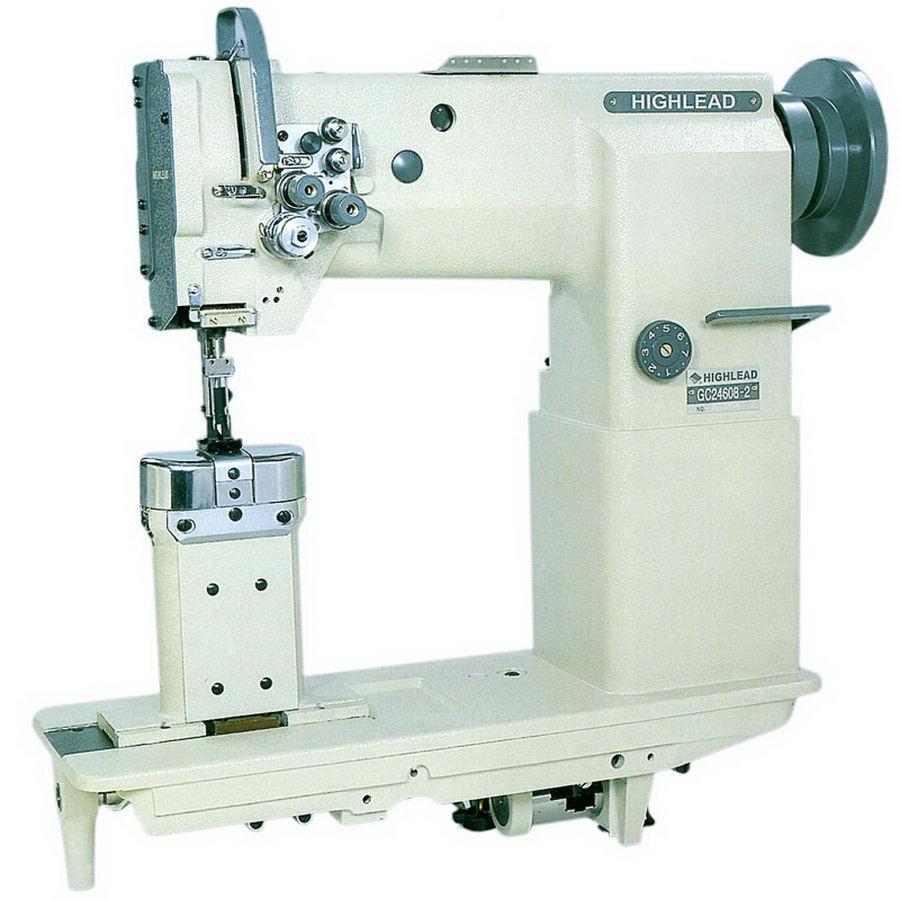

Highlead GC24608 Series Industrial Sewing Machines with Assembled Table and Motor

POST-BED COMPOUND FEED LOCKSTITCH SEWING MACHINE

A post bed compound feed machine that is available in three different styles – single needle left side post sewing, single needle right side post sewing and double needle sewing. Standard features include large capacity sewing hooks, a dial type stitch regulator and reverse feeding lever. The machine can be used in the production of car seats, bags and cases, boots, and hand bags.

Specifications and Model Comparison

CATEGORYGC24608-1LG24608-1RGC24608-2GC24608-2Q
Max Sewing Speed 2000 rpm 2000 rpm 2000 rpm 2000 rpm
Stitch Length 0 - 7 mm 0 - 7 mm 0 - 7 mm 0 - 7 mm
Needle Bar Stroke 36 mm 36 mm 36 mm 36 mm
Presser Foot Lift By Hand: 8 mm; By Knee 16 mm By Hand: 8 mm; By Knee 16 mm By Hand: 8 mm; By Knee 16 mm 16 mm Pneumatic
Needle Size DP x 17 22 #-24# DP x 17 22 #-24# DP x 17 22 #-24# DP x 17 22 #-24#
Needle gauge Manual lubricated large hook Manual lubricated large hook Manual lubricated large hook Manual lubricated large hook
Bed Type Left-side stitching bed Right-side stitching bed N/A N/A
Rotating Hook Manual lubricated large hook Manual lubricated large hook Manual lubricated large hook Manual lubricated large hook
Lubrication Semi-auto lubricated Semi-auto lubricated Semi-auto lubricated Semi-auto lubricated
Pneumatic reverse feeding device N/A N/A N/A Yes
Pneumatic foot lifting device N/A N/A N/A Yes
Motor 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 550W Servo motor
Standing operation pedal Optional device Optional device Optional device Optional device



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
