Highlead GC24618 Series Industrial Sewing Machines

  • Image 1
Price:
$1,379.40
SKU:
P3113SW55823
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

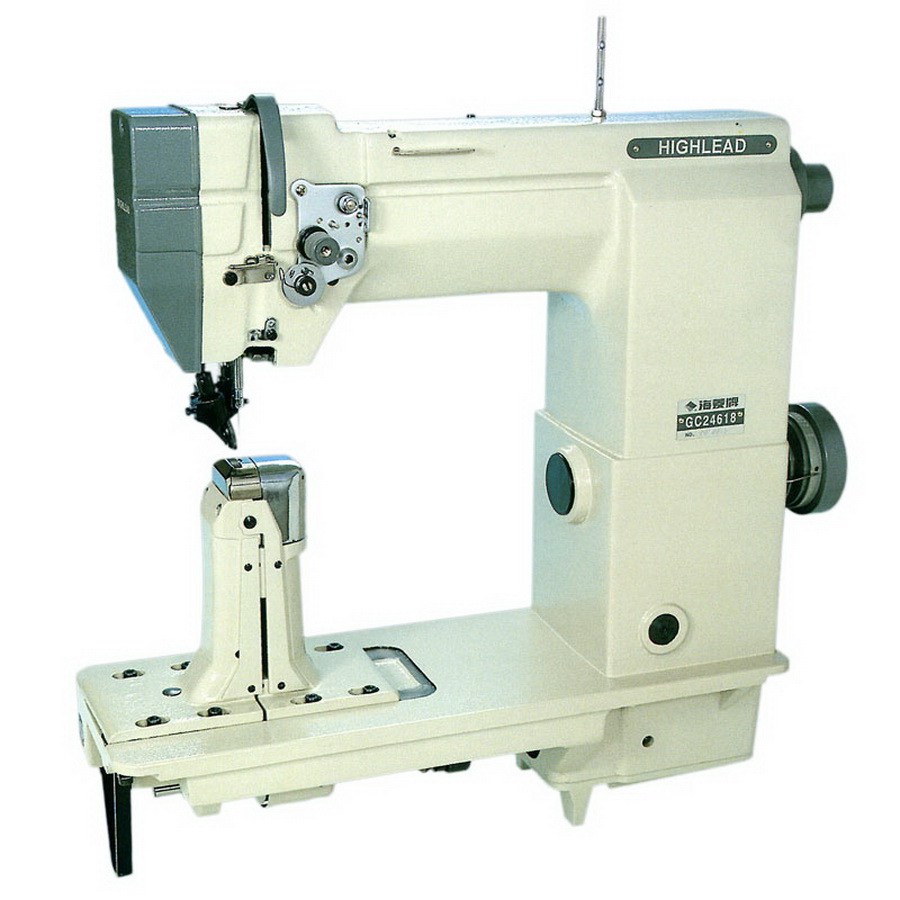

Highlead GC24618 Series Industrial Sewing Machines with Assembled Table and Motor

POST-BED COMPOUND FEED LOCKSTITCH SEWING MACHINE

These compound feed post bed machines derive their feeding power from a top driven roller presser foot and a bottom driven roller wheel feed dog. They are designed with a link lever thread take up and use a timing belt to transfer power from the main shaft to the hook shaft. Needle bearings and ball bearings are used in critical positions thereby ensuring smooth and quiet operation. They are used in sewing such small radius items as leather shoes, handbags, gloves, caps and similar articles.

MODEL GC20618-CX

One needle post bed with top driven roller feed and bottom wheel feed for thick thread

MODEL GC24618-1CX

Two needle (3/32 gauge) post bed with top driven roller feed and bottom wheel feed for thick thread

Specifications and Model Comparison

CATEGORYGC24618GC24618-1GC24618-DGC24618-1D
Max Sewing Speed 3000 rpm 3000 rpm 3000 rpm 3000 rpm
Stitch length 1.3 - 7 mm 1.3 - 4.8 mm 1.3 - 7 mm 1.3 - 4.8 mm
Needle bar stroke 38 mm 38 mm 38 mm 38 mm
Presser foot lift By Hand: 7 mm; By Knee: 14 mm By Hand: 7 mm; By Knee: 14 mm By Hand: 7 mm; By Knee: 14 mm By Hand: 7 mm; By Knee: 14 mm
Post height 178 mm 178 mm 178 mm 178 mm
Feed Dog Driven roller type Driven roller type Driven roller type Driven roller type
Needle Size DP x 5 11# - 14# DP x 5 11# - 14# DP x 5 11# - 14# DP x 5 11# - 14#
Needle Gauge N/A 2.4 mm N/A 2.4 mm
Thread trimming N/A N/A Yes Yes
Rotating hook Vertical hook Vertical hook Vertical hook Vertical hook
Lubrication Manual Manual Manual Manual
Motor 370W Clutch motor 1400 r.p.m. 370W Clutch motor 1400 r.p.m. 220V 550W Servo motor 220V 550W Servo motor



Compare models and choose your model in the dropdown below the add to cart.



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
