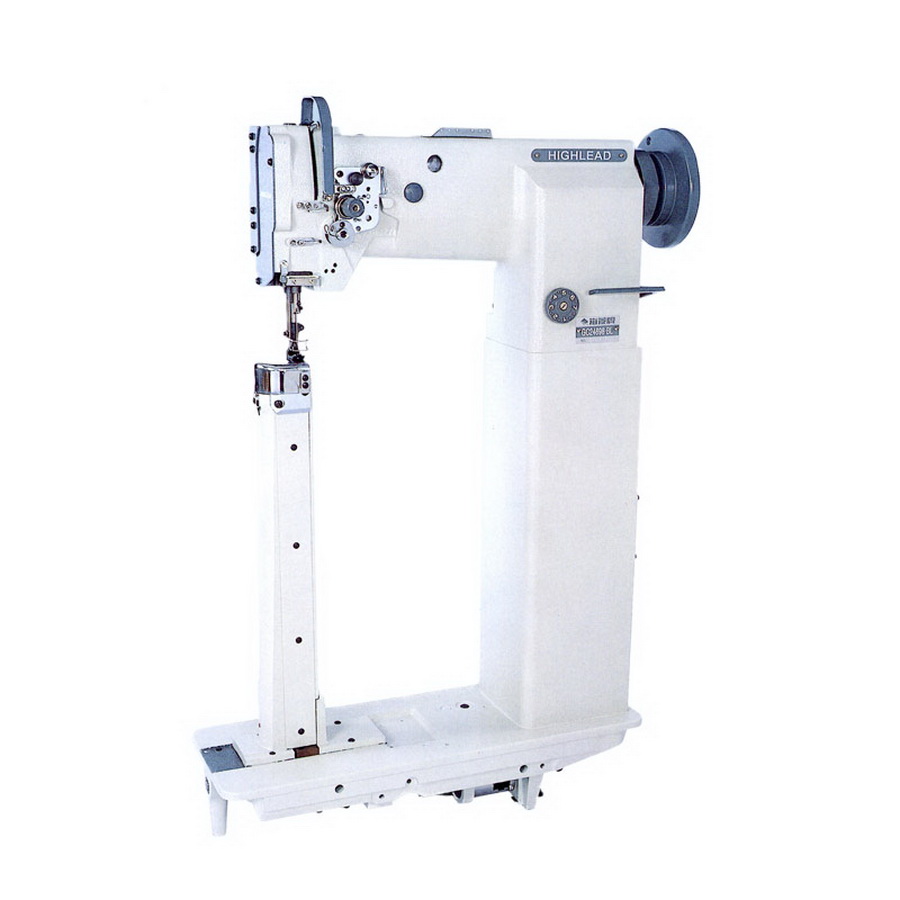

Highlead GC24698 Series Industrial Sewing Machines

  • Image 1
Price:
$4,109.40
SKU:
P3113SW56661
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Highlead GC24698 Series Industrial Sewing Machines with Assembled Table and Motor

SUPER POST BED COMPOUND FEED LOCKSTITCH SEWING MACHINE

MODELS GC24698

A compound feed post bed machine designed with a 17 3/4 inch post bed. The machine is available as a single needle with left side stitching bed, a single needle with right side stitching bed or a double needle. A dial type stitch regulator and reverse feeding lever are standard. A large capacity sewing hook means that bobbin changes are not as frequent. It is best suited to be used on large articles with a small radius such as boots, hand bags, hats, cases, bags and wigs.

MODELS GC24698-25

This series is the long arm type of GC24698 series. While maintaining the features of compound feed mechanism and high post bed, the arm and bed have been double lengthened for large working space. It is sub-classed into two needle type, single needle left-side stitching bed type (L) and single needle right-side stitching bed type (R) to meet different sewing requests. With special needle plate, powerful servo motor, pneumatic presser foot lift and pneumatic back tacking, it is available for sewing large and cubic articles with small radius easily and smoothly.

MODELS GC24698-5/-6

Heavy duty 20″ long arm post bed walking foot machines equipped with jumbo hooks, air foot lift and air reverse feeding. The machines are available in two single needle varieties either with the post to the right of the needle (GC24698-5R) or with the post to the left of the needle (GC24698-5L). The double needle subclass is available using model GC24698-6. These machines are useful in the construction of any product where a high lift heavy duty machine is required to sew in hard to reach areas and difficult to handle materials.

MODEL GC24698-BRHL

This model is a highest post bed subclass of Highlead post bed compound feed heavy duty lockstitch sewing machines. In order to meet the sewing demand of trunk and bag industry, it is designed with standing sewing operation, lower machine gravity centre, right-side post bed, special needle plate, outer presser foot with guide, powerful servo motor, inertia machine pulley, pneumatic presser foot lift, pneumatic backtack and standing operation pedal. With features of powerful penetrating force, large working space and labor saving, it is an ideal sewing equipment for trunk and bag industry.



Specifications and Model Comparison

CATEGORYGC24698-1LGC24698-1RGC24698-2B-25GC24698-5LGC24698-5RGC24698-6GC24698-2GC24698-2BGC24698-25LGC24698-25RGC24698-BLGC24698-BRGC24698-BRHL
Max Sewing Speed 1600 rpm 1600 rpm 2600 rpm 1200 rpm 1200 rpm 1200 rpm 1600 rpm 1600 rpm 1200 rpm 1200 rpm 1600 rpm 1600 rpm 800 rpm
Bed type Left-side stitching bed Right-side stitching bed N/A Left-side stitching bed Right-side stitching bed N/A N/A N/A Left-side stitching bed Right-side stitching bed Left-side stitching bed Right-side stitching bed N/A
Stitch length 0 - 6 mm 0 - 6 mm 0 - 7 mm 10 mm 10 mm 10 mm 0 - 7 mm 0 - 7 mm 0 - 7 mm 0 - 7 mm 0 - 7 mm 0 - 7 mm 0 – 10 mm
Needle bar stroke 36 mm 36 mm 36 mm 47.3 mm 47.3 mm 47.3 mm 36 mm 36 mm 36 mm 36 mm 36 mm 36 mm 36 mm
Presser foot lift By Hand: 8 mm; By Pneumatic: 15 mm By Hand: 8 mm; By Pneumatic: 15 mm By Hand: 8 mm; By Pneumatic: 15 mm 28 mm pneumatic 28 mm pneumatic 28 mm pneumatic By Hand: 8 mm; By Pneumatic: 15 mm By Hand: 8 mm; By Pneumatic: 15 mm By Hand: 8 mm; By Pneumatic: 16 mm By Hand: 8 mm; By Pneumatic: 16 mm By Hand: 8 mm; By Pneumatic: 15 mm By Hand: 8 mm; By Pneumatic: 15 mm 15 mm Pneumatic
Presser foot alternation 3-5 mm 3-5 mm 3-5 mm N/A N/A N/A 3-5 mm 3-5 mm 2 – 6 mm 2 – 6 mm 3-5 mm 3-5 mm 3-5 mm
Needle Size DP x 17 17# - 23# DP x 17 17# - 23# DP x 17 17# - 23# DY x 3 26# DY x 3 26# DY x 3 26# DP x 17 17# - 23# DP x 17 17# - 23# DP x 17 18# - 23# DP x 17 18# - 23# DP x 17 17# - 23# DP x 17 17# - 23# DP x 17 18 - 25
Needle Gauge N/A N/A 9.5 mm (8.0 mm option) N/A N/A 19 mm (Standard), 12.7 mm (Optional) 9.5 mm (8.0 mm option) 9.5 mm (8.0 mm option) N/A N/A N/A N/A N/A
Highness of post-bed 450 mm 450 mm 450 mm 184.5 mm 184.5 mm 184.5 mm 450 mm 450 mm 450 mm 450 mm 450 mm 450 mm 670 mm
Rotating hook Vertical hook Vertical hook Vertical hook Large vertical hook Large vertical hook Large vertical hook Vertical hook Vertical hook Vertical hook Vertical hook Vertical hook Vertical hook Vertical hook
Lubrication Semi-auto lubricated Semi-auto lubricated Semi-auto lubricated Manual Manual Manual Semi-auto lubricated Semi-auto lubricated Manual Manual Semi-auto lubricated Semi-auto lubricated Manual
Motor 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 220V 550W Servo motor 220V 550W Servo motor 220V 550W Servo motor 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 220V 550W Servo motor 220V 550W Servo motor 370W Clutch motor 1400 rpm 370W Clutch motor 1400 rpm 220V 550W Servo motor



Compare models and choose your model in the dropdown below the add to cart.



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
