Highlead HLK 3020 Series Industrial Sewing Machines

  • Image 1
Price:
$10,559.40
SKU:
P3113SW18317
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

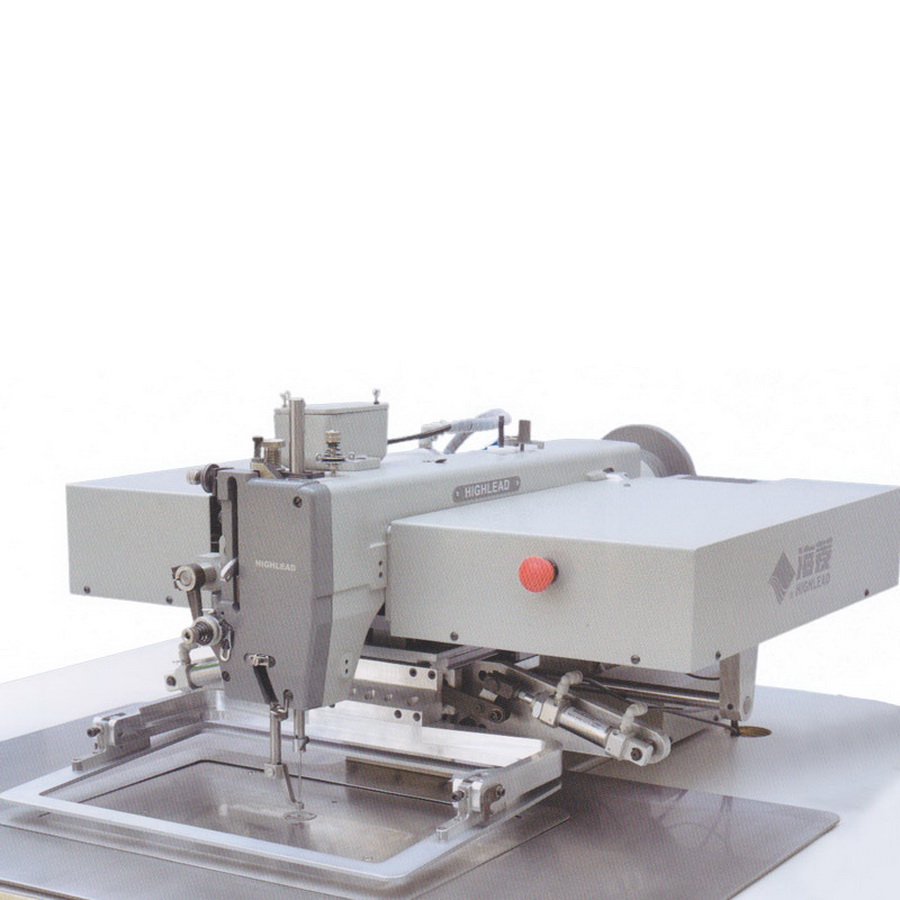

Highlead HLK-3020 Series Industrial Sewing Machines with Assembled Table and Motor

EXTRA HEAVY DUTY ELECTRONIC PATTERN SEWING MACHINE

HLK-3020

This HLK model features the latest Direct Drive system with a servo motor fitted as part of the sewing machine head; this improves sewing acceleration while greatly reducing power transmission losses and results in energy savings of up-to 40% when compared with conventional machines. Sewing patterns, stitch numbers and stitch length can be set with-in the sewing area using the included hand held programming unit with colour touch screen and easy to use icon driven menus. The adoption of the universal serial bus (USB) makes programming, updating and storage easier. Inexpensive USB memory sticks are readily available.

HLK-3020(TH)

This model is a subclass of High lead electronic pattern sewing machine series. Equipped with high accurate electronic control system and high performance servo motor, sewing pattern and sewing parameters such as stitch number, stitch length, etc can be set at discretion within the range by a programmer. It can also be operated by inputting the pre-programmed stitching pattern through USB connection. With the features of precise structure design, reliable driving and convenience in pattern input. Pattern revision, pattern storage and pattern recall. It is a large size electronic pattern sewing machine specially designed for stitching extra heavy duty articles such as leather, webbing belt, etc.

Specifications

CATEGORYHLK-3020HLK-3020(TH)
Max Sewing Speed 2700 r.p.m. 800 r.p.m.
Speed preset N/A 100-800 r.p.m. at discretion
Stitch length 0.1 - 12.7 mm 0.1 - 12.7 mm
Needle bar stroke 41.2 mm 56 mm
Thread take-up lever stroke 73 mm 96 mm
Presser foot lift 20 mm Outer presser foot 30mm (pneumatic) Middle presser foot 20 mm
Sewing area 300mm in X-way (Horizontal), 200mm in Y-way (vertical) 300mm in X-way (Horizontal), 200mm in Y-way (vertical)
Needle Size DPx17 #18 (standard) DY x 3 26#
Hook Shuttle hook KSP-204N Large Shuttle hook
X-Y Driving mechanism Interim or continuous switch among stepping motors, racks and guide rails Interim or continuous switch among stepping motors, racks and guide rails
Motor 220V 550W Servo motor 220V 750W Servo motor
Enlargement/Reduction ratio N/A X-Y 10%-200% (0.1%/step)



Compare models and choose your model in the dropdown below the add to cart.



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
