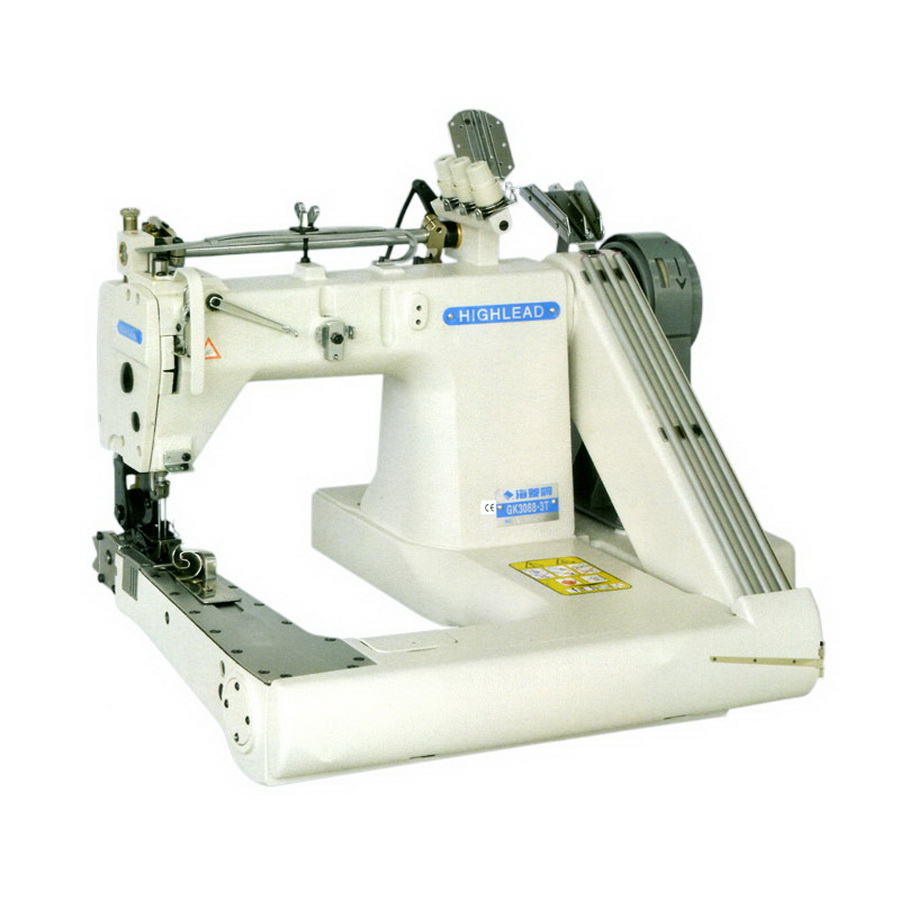

Highlead GK3088 Series Industrial Sewing Machines

  • Image 1
Price:
$2,579.40
SKU:
P3113SW89621
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Highlead GK3088 Series Industrial Sewing Machines with Assembled Table and Motor

TOP AND BOTTOM FEED CHAINSTITCH SEWING MACHINE

A high speed two or three needle feed off the arm chain stitch machine that adopts link take up and lower loopers to produce two or three parallel rows of chain lock stitching. Ball bearings are used in all critical support areas and a drive belt is used to drive the top arm shaft and lower shaft. The loopers can be adjusted independently of one another to maximize stitching quality when using different fabrics and threads. The machine is best suited for use on light to medium heavy weight material (GK3088-2) or heavy weight material such as denim (GK3088-3B which is equipped with puller) and is used in lap seaming to join pant legs, shirt under arms and on other tubular like sewing operations. It is also well suited to sew tape inside of T-shirts and knit shirts.

GK3088-2T:

Twin-needle feed-off-the arm sewing machine

GK3088-3T:

Twin-needle feed-off-the arm sewing machine with puller

Specifications and Model Comparison

CATEGORYGK3088-2TGK3088-3T
Max Sewing Speed 4000 rpm 3500 rpm
Stitch length 1.2 – 3.2 mm 1.2 – 3.2 mm
Presser foot lift 10 mm 10 mm
Needle Bar Stroke 28 mm 28 mm
Needle gauge (Standard) 4.8 mm (Special) 6.4 mm (Standard) 6.4 mm
Needle Size TV x 64 16# (Standard) TV x 64 21# (Standard)
Lubrication Manual Manual
Motor 370W Clutch motor 370W Clutch motor
Working space 173 mm N/A
Puller device N/A Yes




THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
