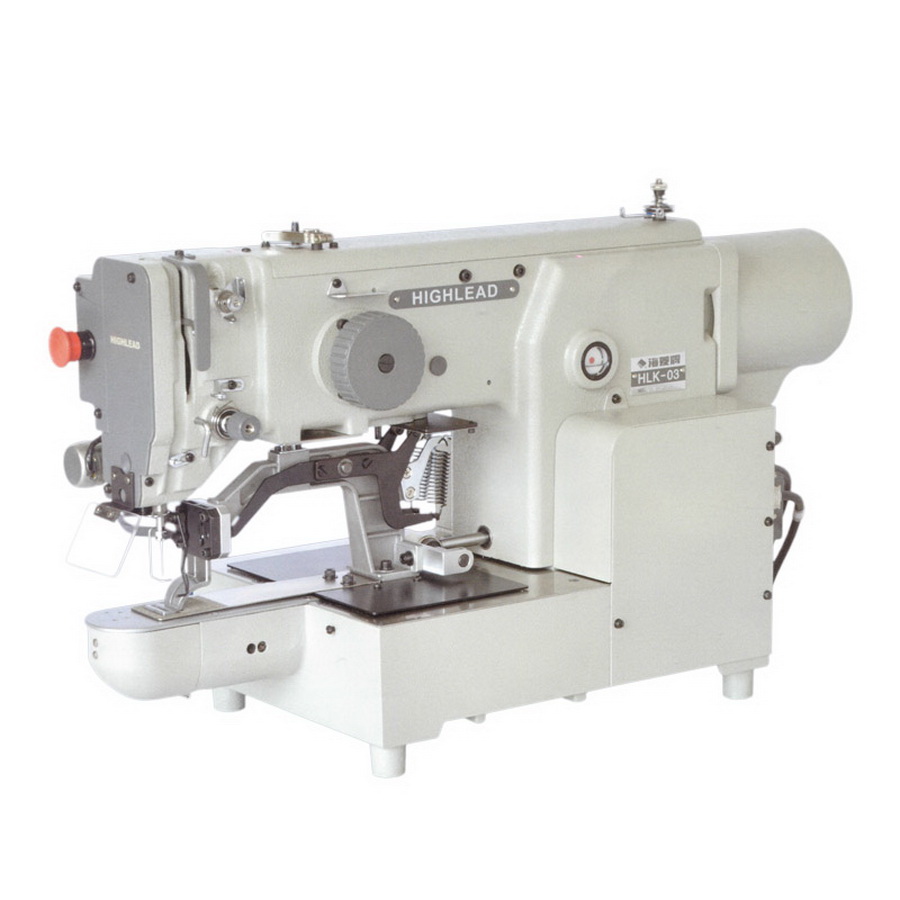

Highlead HLK 03 Series Industrial Sewing Machines

  • Image 1
Price:
$5,159.40
SKU:
P3113SW86888
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Highlead HLK-03 Series Industrial Sewing Machines with Assembled Table and Motor

ELECTRONIC BARTACKING MACHINE

HLK-03(HP)

HLK-03 electronic bartacking machine is a model which is developed by Highlead and can perform bartacking and small sized pattern sewing. It has the features such as main shaft directly driven by mini powerful servo motor, Chinese professional pattern sewing control system, high accurate stepping motor with powerful torque, a built-in memory with 60 standard bartacking patterns, specialized operation panel which can easily enable pattern selection, sewing speed selection, pre-setting or modification of sewing mode and parameter. By being programmed by special software, patterns can be input through USB terminal into the built-in memory. By using special presser foot (option) this model can perform bartacking or sewing of special patterns. It’s easy operation, flexible application, and high efficiency make this equipment a must for top brand apparels and small sized bags.

HLK-03(F)

This model is a small size electronic bartacking and pattern sewer developed by Highlead for soft cushion or light spongy articles. The front of machine head is hinged with machine bed and can be lifted up for about 20 degree to enable to put in place a 90 mm thickness of sponge or plastic foam or cotton in a free state, which will be easily pressed by a special presser foot for stitching after machine head is reset. By using a special presser foot (optional), this machine can perform special bartacking or small size pattern sewing. It has the features such as direct drive servo motor, Chinese advanced servo control system, specialized operation panel which can easily enable pattern selection, sewing speed selection and pre-setting or modification of sewing mode and parameter. Patterns programmed by special software can be input through USB terminal into the built-in memory for use.

Specifications

CATEGORYHLK-03(HP)HLK-03(F)
Max Sewing Speed 2700 rpm 2000 rpm
Speed preset 200 – 2700 r.p.m. 200 – 2000 r.p.m.
Stitch length 0.1 - 12.7 mm 0.1 - 12.7 mm
Stitch type Single needle lockstitch Single needle lockstitch
Needle bar stroke 41.2 mm 41.2 mm
Thread take-up lever stroke 68 mm 68 mm
Presser foot lift 15 mm (electric) Max. 90 mm
Sewing area 30 mm in X-way (Horizontal), 30 mm in Y-way (Vertical) 30 mm in X-way (Horizontal), 30 mm in Y-way (Vertical)
Sewing pattern 60 pre-set and 100 additional for built-in memory N/A
Needle Size DP x5 16# (Standard) DP x5 16# (Standard)
Thread trimming Auto thread trimming (electric) Auto thread trimming (electric)
Hook Shuttle hook Shuttle hook
Lubrication Manual Manual
Motor 220V 550W Servo motor 220V 550W Servo motor



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
