Highlead GC188 Series Industrial Sewing Machines

  • Image 1
Price:
$659.40
SKU:
P3113SW46732
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

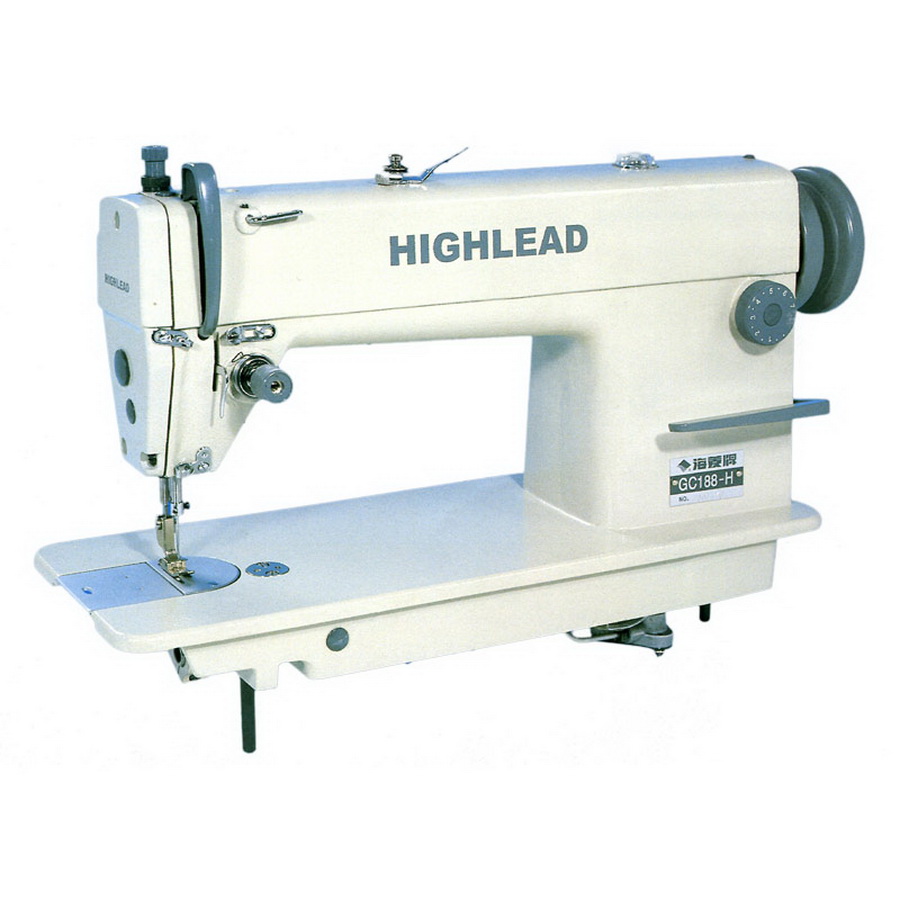

Highlead GC188 Series Industrial Sewing Machines with Assembled Table and Motor

HIGH SPEED SINGLE NEEDLE LOCKSTITCH SEWING MACHINE

This series high speed lockstitch machine uses a link type feeding mechanism, link thread take up and rotating hook to form clean, crisp stitches. Bevel gears that drive the arm shaft and hook in combination with the dial operated stitch regulator make it easy to adjust and maintain the desired stitch length regardless of speed or stitching direction. The different available subclasses allow for a wide range of different materials to be sewn without difficulty.

Specifications and Model Comparison

MODELMAX SEWING SPEEDSTITCH LENGTHNEEDLE BAR STROKEPRESSER FOOT LIFT BY HANDPRESSER FOOT LIFT BY KNEENEEDLE SIZEFEED DOGROTATING HOOKLUBRICATIONMOTOR
GC188-M 5000 rpm 0 - 5 mm 31.8 mm 5.5 mm 13 mm DB x 1 9#-16# 3 rows of teeth Auto lubricated hook Auto lubricated 370W Clutch motor
GC188-M-D4 5000 rpm 0 - 4 mm 31.8 mm 6 mm 13 mm DB x 1 14# 4 rows of teeth Auto lubricated hook Auto lubricated Speed Adjustment Motor
GC188-MDZ 4500 rpm 0 - 4 mm 32 mm 6 mm 13 mm DB x 1 14# 4 rows of teeth Auto lubricated hook for trimmer. Left knife rotating, right knife fixed Auto lubricated 220V 550W Servo motor
GC1288-H 3500 rpm 0 - 7 mm 35 mm 6 mm 13 mm DB x 5 18#-24# 3 rows of teeth Auto lubricated hook Auto lubricated 370W Clutch motor
GC188-MC 4500 rpm 0 - 5 mm 31.8 mm 4 mm 10 mm DB x 1 9#-14# N/A N/A Auto lubricated 370W Clutch motor
GC188-MC-D 4500 rpm 0 - 5 mm 31.8 mm 4 mm 10 mm DB x 1 9#-14# N/A Auto lubricated hook Auto lubricated Speed Adjustment Motor



Models GC188-MC and GC188-MC-D include an Edge Cutter

GC188-MC

  • Knife position: Knife at right side
  • Thickness to be cut: Max .4 mm
  • Knife position: Knife at right side
  • Width to be cut: Standard 3.2 mm special 4.0, 4.8, 6.4, 9.5 mm

GC188-MC-D

  • Knife position: Knife at right side
  • Thickness to be cut: Max .4 mm
  • Knife position: Knife at right side
  • Width to be cut: Standard 3.2 mm special 4.8, 6.4 mm
  • Auto trimmer and auto backtacking: Yes

THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
