Highlead GK500 Series Industrial Sewing Machines

  • Image 1
Price:
$1,319.40
SKU:
P3113SW30838
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

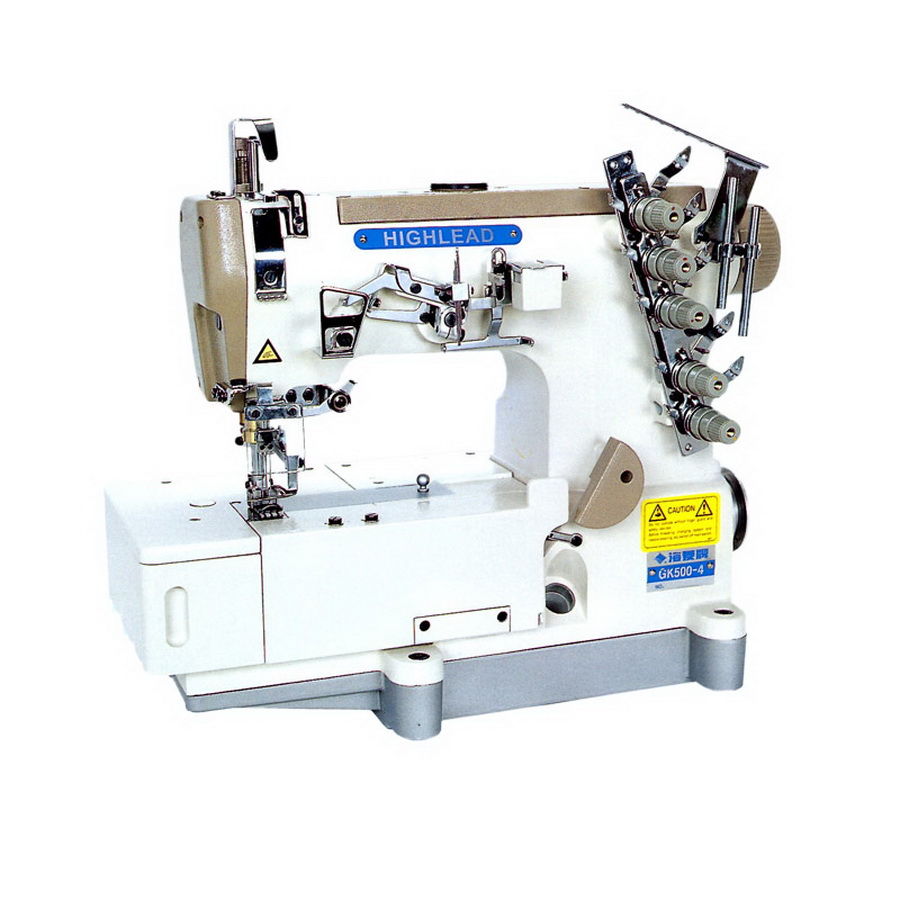

Highlead GK500 Series Industrial Sewing Machines with Assembled Table and Motor

HIGH SPEED THREE-NEEDLE INTERLOCK CHAINSTITCHER

Model GK500-4 is Highlead's newest style 3 needle 5 thread differential feed flat bed top and bottom cover stitch machine. The machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. Easy adjustment of the bottom differential feeding system, an easy to use knob type stitch regulator and easy machine threading are but a few of the machines many features. It is used in the production of a variety of knit goods such as underwear, sportswear, T shirts and polo shirts and is capable of covering seams as well as being used as a decorative stitch on the above mentioned and similar articles.

GK500-4:

Three needle flat bed top and bottom cover stitch

GK500-401:

Three needle top and bottom cover stitch for binding operations

GK500-4D:

Three needle flat bed top and bottom cover stitch UBT

Specifications and Model Comparison

CATEGORYGK500-4GK500-401GK500-4D
Max Sewing Speed 6000 rpm 6000 rpm 6000 rpm
Stitch length 4.4 mm 4.4 mm 4.4 mm
Number of needle 3 3 3
Number of thread 5 5 5
Presser foot lift 5.5 mm 5.5 mm 5.5 mm
Needle gauge 5.5 6.4 5.5 6.4 5.5 6.4
Needle Size UY 128GAS 9#-10# UY 128GAS 9#-10# UY 128GAS 9#-10#
Motor 370W Clutch motor 370W Clutch motor 220V 550W Servo motor
Differential 0.5 – 1.3 0.5 – 1.3 0.5 – 1.3



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
