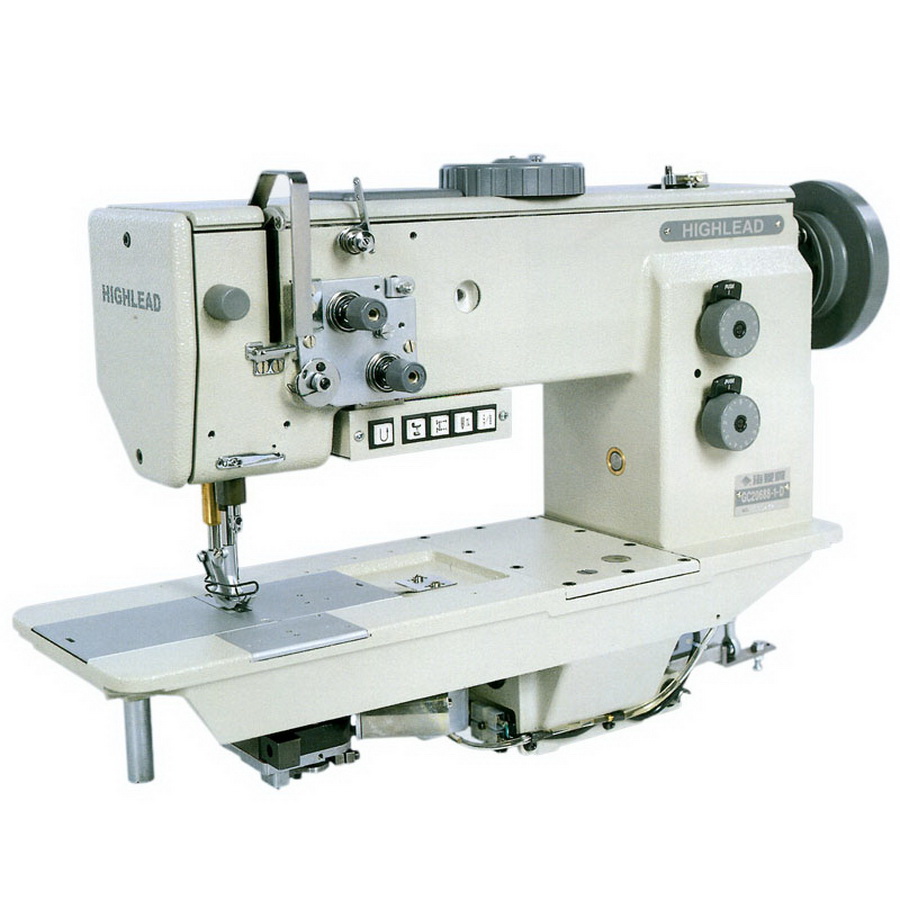

Highlead GC20688 Series Industrial Sewing Machines

  • Image 1
Price:
$4,529.40
SKU:
P3113SW25044
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Highlead GC20638 Series Industrial Sewing Machines with Assembled Table and Motor

TWO NEEDLE COMPOUND FEED SPLIT NEEDLE BAR LOCKSTITCH SEWING MACHINE

A high speed automatically lubricated compound feed lockstitch machine which incorporates automatic thread trimming, automatic back tacking, and presser foot lifting as standard with a powerful feeding system for hard to sew articles. The inner presser foot stroke is easily adjusted to assist in climbing over thick materials and a second selected stitch length adjustment is useful when alternating stitch lengths are used in product construction. It is used extensively to sew thick leather, nylon, synthetic leather, automobile upholstery and automobile seating and interiors.

Specifications and Model Comparison

CATEGORYGC20688-1-DGC20688-1BDLGC20688-2-DGC20688-2BDLGC20688-2BDC
Max Sewing Speed 3500 rpm 2400 rpm 3200 rpm 2400 rpm 2800 rpm
Stitch Length 0-9 mm 0-9 mm 0-9 mm 0-9 mm 0-9 mm
Needle Bar Stroke 34 mm 34 mm 34 mm 34 mm 34 mm
Presser Foot Lift 16 mm BY Pneumatic 16 mm BY Pneumatic 16 mm BY Pneumatic 16 mm BY Pneumatic By hand: 9 mm / By pneumatic: 16 mm
Needle Size DP x 17 18#-25# (Standard 18#) DP x 17 18#-25# (Standard 18#) DP x 17 18#-25# (Standard 18#) DP x 17 18#-25# (Standard 18#) DP x 17 18#-23#
Rotating Hook Large vertical hook (1.6 times) Large vertical hook (2.5 times) Large vertical hook (1.6 times) Large vertical hook (2.5 times) Large vertical hook (2.5 times)
Presser foot alternation 1.5-7mm 1.5-7mm 1.5-7mm 1.5-7mm 1 – 7 mm
Needle Gauge N/A N/A 3.2 6.4 8 10 12 mm 3.2 6.4 8 10 12 mm N/A
Auto presser foot lifter Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Presser alternation adjuster Pneumatic Pneumatic Pneumatic Pneumatic Dial type
Safety Device Standard Standard Standard Standard Standard
Lubrication Auto lubricated Auto lubricated Auto lubricated Auto lubricated Auto lubricated
Reverse Feeding Device Auto reverse feeding Auto reverse feeding Auto reverse feeding Auto reverse feeding Auto reverse feeding
Working space 300 x 120 mm 710 x 120 mm 300 x 120 mm 710 x 120 mm 300 x 120 mm
Width to be cut N/A N/A N/A N/A 8 mm Standard / 3 mm Special
Motor 750W Servo motor 750W Servo motor 750W Servo motor 750W Servo motor 750W Servo motor



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
