Highlead GC24628 Series Industrial Sewing Machines

  • Image 1
Price:
$2,909.40
SKU:
P3113SW73665
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

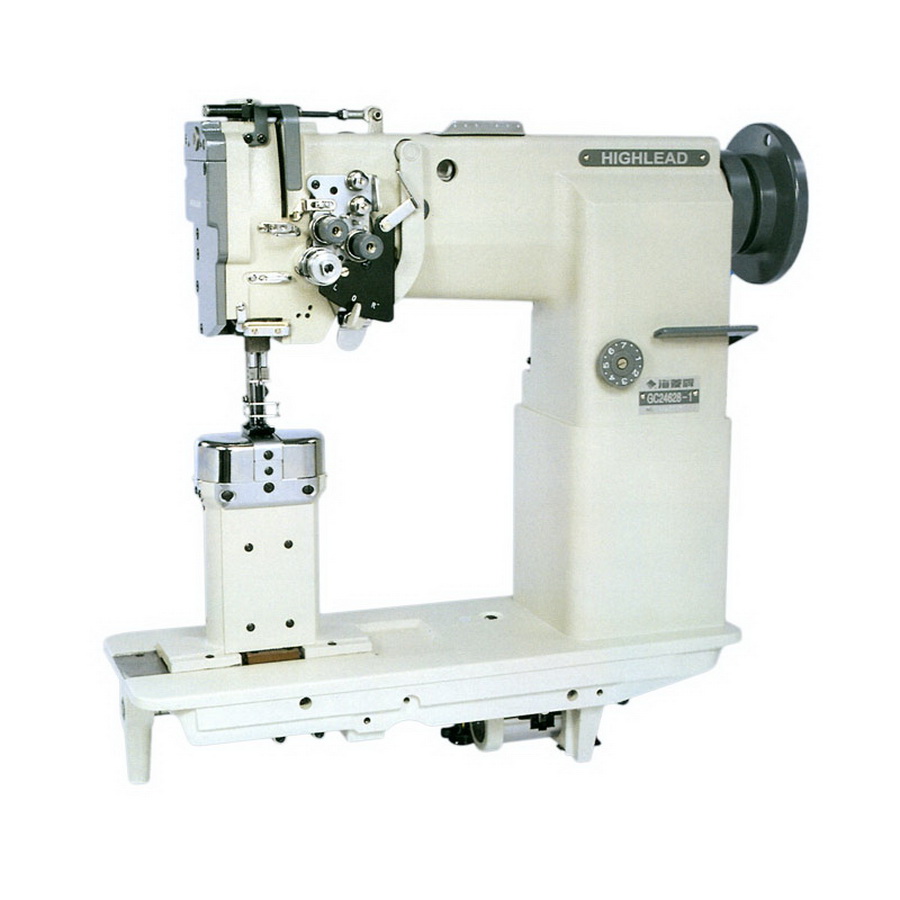

Highlead GC24628 Series Industrial Sewing Machines with Assembled Table and Motor

TWO NEEDLE POST BED COMPOUND FEED SPLIT NEEDLE BAR LOCKSTITCH SEWING MACHINE

This machine is a new product of High lead brand post bed two needle lockstitch sewing machine series, which is designed with post bed, compound feeding mechanism and split needle bar mechanism. The two needles can be engaged or disengaged for convenient corner stitching and clear stitches, especially available for stitching on surface with radius. With compound feeding mechanism, it is available for stitching multi-layer material of heavy weight, such as leather, foam plastics, synthetic fabric, etc and can avoid any displacement. It is a high class equipment for stitching car seats, fabric decorations in cars, shoe uppers of leather or synthetic leather, sports apparatus, office furniture, soft cushion, trunk, bag, etc.

MODEL GC24628-1

Two needle post bed complund feed split needle bar lockstitch sewing machine

MODEL GC24628-25

Long arm two needle post bed compound feed split needle bar lockstitch sewing machine

Specifications and Model Comparison

CATEGORYGC24628-1GC24628-25
Max Sewing Speed 2000 rpm 1600 rpm
Stitch length 0 - 7 mm 0 - 7 mm
Needle bar stroke 33.4 mm 33.4 mm
Presser foot lift By hand: 7mm; By knee: 13 mm Pneumatic foot lifting 13 mm
Reverse feeding device By hand Pneumatic
Needle Size DP x 17 23# DP x 17 23#
Needle Gauge 8mm (Standard) 4.8 6.4 9.5 12.7mm (Special) 8mm (Standard) 4.8 6.4 9.5 12.7mm (Special)
Highness of post-bed 178 mm 178 mm
Rotating hook Auto lubricated large hook Auto lubricated large hook
Lubrication Semi-auto lubricated Semi-auto lubricated
Motor 370W Clutch motor 1400 r.p.m. 220V 550W Servo motor
Working space 250 mm x 280 mm/9.84 in. x 11.02 in. 635 mm x 280 mm/25 in. x 11.02 in.



THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
