Juki MO 6714 4 Thread High speed Overlock

  • Image 1
Price:
$1,139.40
SKU:
P3113SW63493
Condition:
New
Availability:
In Stock
Quantity:


Product Description

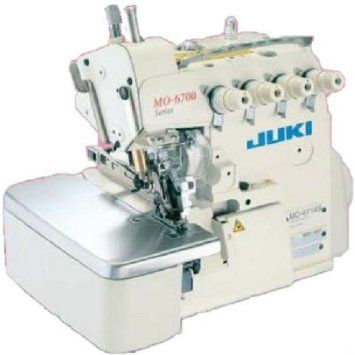

JUKI MO-6714 - 4 THREAD HIGH-SPEED OVERLOCK INDUSTRIAL SERGER

INCLUDES FULLY ASSEMBLED TABLE AND SERVO MOTOR

A general-purpose advanced machine that responds to various kinds of sewing materials and processes.

The MO-6700S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This is a highly advanced cost-effective machine.

This Package includes a Fully Assembled Table and a Servo Motor.
The machine ensures both beautiful and upgraded seam quality at higher speeds

Since the machine comes with a needle-thread take-up mechanism as well as a looper thread take-up mechanism, to offer upgraded responsiveness from light- to heavy-weight materials with a lower applied tension, it achieves well-tensed soft-feeling seams that flexibly correspond to the elasticity of the material at the maximum sewing speed of 7,000sti/min.

Devices intended for conventional JUKI machines are also interchangeable.

Gauges and devices you have used with your existing JUKI machines are also interchangeable with no additional machining. This eliminates both the waste of resources and unwanted extra costs.

Further increased reliability.

The newly adopted upper and lower needle bar bushings of the needle bar mechanism improve both the durability and reliability of the needle bar unit. The machine comes standard with a cartridge type oil filter and cooling fan for further improved reliability and durability.

The machine has been developed with the intention of providing an extended service life.

The machine incorporates various mechanisms as standard, such as a differential-feed micro-adjustment mechanism and an external adjustment mechanism for adjusting the feed dog inclination as well as increasing the differential feed ratio, which can be easily adjusted to finish seams that perfectly match the material to be used. Comfortable operation is all but guaranteed, by a wider area around the needle entry, the adoption as standard of a micro-lifter feature that offers improved responsiveness to materials and provides the operator with upgraded operability, and by the reduction of operating noise and vibration, which has been achieved by designing an optimally balanced machine.

MACHINE SPECIFICATIONS

Stitch Type 2-Needle Overlock
Stitch Style 514
Max. Sewing Speed 7,000 Stitches per Minute
Stitch Length 0.8~4mm
Overedging width (mm) 3.2, 4.0, 4.8
Differential Ratio for Gathering 1:2 (max. 1:4)
Differential Ratio for Stretching 1:0.7 (max. 1:0.6)
Needle Bar Stroke 24.5mm
Inclination Angle of the Needle 20°
Needle DCx27 (excluding some subclass model)
Max. Lift of the Presser Foot 7mm (excluding some subclass model)
Max. Presser Foot Pressure 63.7N (6.5kgf)
Weight of Machine Head 28kg
Lubrication Automatic
Lubricating Oil Juki Machine Oil 18 (equivalent to ISO VG18)

MOTOR OPTIONS

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  • 1. Fixed-Speed Clutch Motor
  • 2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed servo motor.

Warranty Information

5 YEAR LIMITED WARRANTY
