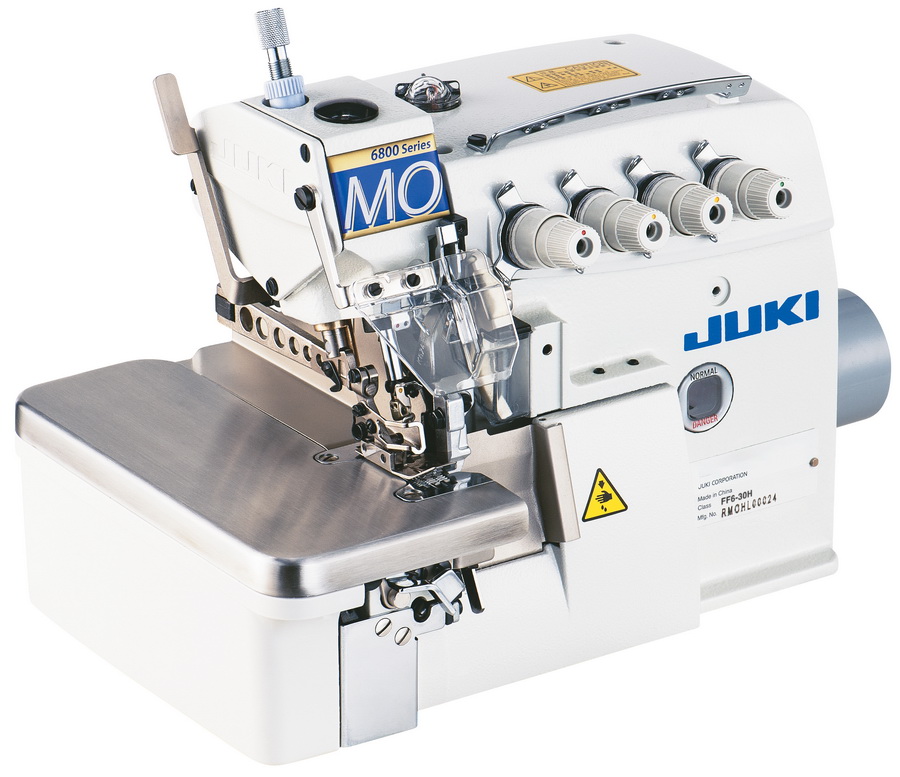

Juki MO 6814S 4 Thread High-speed Overlock Industrial Serger

  • Image 1
Price:
$1,019.40
SKU:
P3113SW49851
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

Juki MO-6814 - High-speed Industrial 4 Thread Overlock Stitch Serger

This advanced overlock machine is easier to use and promises superior cost effectiveness.

The Juki MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock machine is easier to use and promises superior cost-effectiveness as well as the responsiveness from light- to heavy-weight materials with a lower applied tension.

THE MACHINE ACHIEVES BEAUTIFULLY FINISHED SEAMS OF IMPROVED QUALITY EVEN WHEN RUN AT A HIGH SPEED.

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

THE MACHINE IS PROVIDED WITH FUNCTIONS WHICH CONTRIBUTE TO EASIER OPERATION.

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

COMPARE SPECIFICATIONS & FEATURES

FEATURESMO-6804SMO-6814S(In Stock)MO-6816S(In Stock)MO-6843S
Stitch Type 1-needle overlock 2-needle overlock Safety stitching 3-needle safety stitching
Stitch style in the U.S.A 504 514 516 N/A
Max Sewing Speed 7,000sti/min 7,000sti/min 7,000sti/min 7,000sti/min
Stitch length 0.6 ~ 3.8 (4.5) mm 0.6 ~ 3.8 (4.5) mm 0.6 ~ 3.8 (4.5) mm 0.6 ~ 3.8 (4.5) mm
Needle gauge (mm) N/A 2.0 3.0, 5.0 3.0+2.0, 5.0+2.0
Overedging width (mm) 1.5, 4.0 2.0, 3.0, 4.0 4.0, 5.0, 6.0 3.0
Differental Feed Ratio For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6) For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6) For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6) For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke 24.5mm(60H:27.0mm) 24.5mm(60H:27.0mm) 24.5mm(60H:27.0mm) 24.5mm(60H:27.0mm)
Inclination angle of the needle 20° 20° 20° 20°
Needle bar bushing Lower bushing method Lower bushing method Lower bushing method Lower bushing method
Needle DC×27 (excluding some subclass model) DC×27 (excluding some subclass model) DC×27 (excluding some subclass model) DC×27 (excluding some subclass model)
Max. lift of the presser foot 7mm (excluding some subclass model) 7mm (excluding some subclass model) 7mm (excluding some subclass model) 7mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kgf) 63.7N (6.5kgf) 63.7N (6.5kgf) 63.7N (6.5kgf)
Stitch adjusting method By push-button By push-button By push-button By push-button
Differential-feed adjusting method By lever (with micro-adjustment) By lever (with micro-adjustment) By lever (with micro-adjustment) By lever (with micro-adjustment)
Weight of the machine head 27kg 27kg 27kg 27kg
Lubrication Automatic Automatic Automatic Automatic
Lubricating Oil 6JUKI Machine Oil 18 (equivalent to ISO VG18) JUKI Machine Oil 18 (equivalent to ISO VG18) JUKI Machine Oil 18 (equivalent to ISO VG18) JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle Cooler Provided as standard Provided as standard Provided as standard Provided as standard
Needle Thread Heat Remover Provided as standard Provided as standard Provided as standard Provided as standard
Micro-lifter Option Option Option Option

TABLE SHIPS ASSEMBLED!

ADDITIONAL INCLUDES

It comes complete with sewing machine table and Electronic DC Servo Motor 1/2 H.P, 1 PHASE, 110 VOLT, 0 ~3300 RPM (Model SMS-500), everything (drawer, belt, tools and instruction manual) brand new, packed in sealed boxes and never

Warranty Information

5 YEAR LIMITED WARRANTY
