Juki DDL 9000C Series Industrial Sewing Machines with Table and Motor DDL 9000C SMS or DDL 9000C FMS

  • Image 1
Price:
$1,319.40
SKU:
P3113SW98800
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

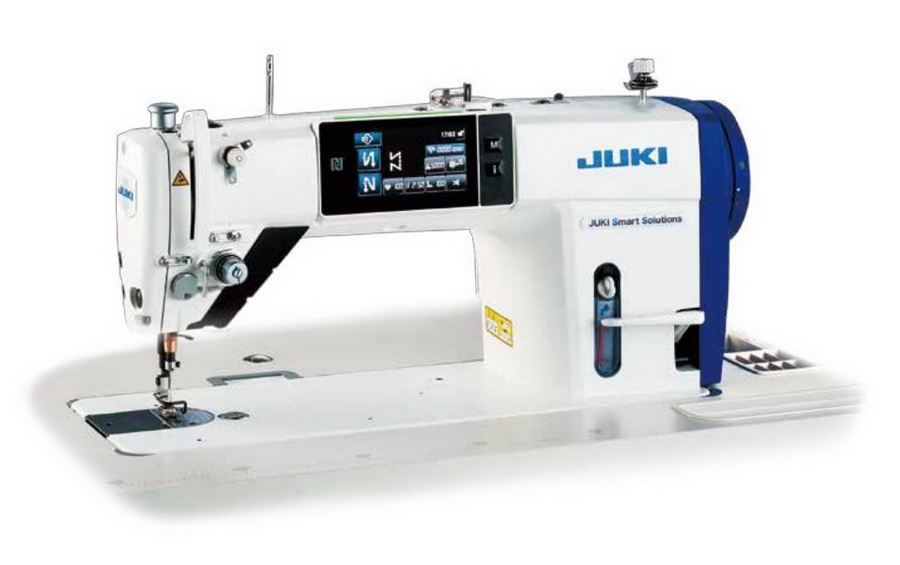

Juki DDL-9000C Series Industrial Heavy Duty Sewing Machines with Table and Motor - DDL-9000C-SMS or DDL-9000C-FMS

JUKI has digitalized the drive mechanism of the sewing machine which determines the "seam" quality, JUKI launches the new "direct-drive, high-speed, lockstitch sewing system with automatic thread trimmer" DDL-9000CF.This is the newest flagship lockstitch machine. Digitalized vertically- and horizontally-driven feed mechanism allows easy adjustment of settings such as the feed locus only on the operation panel according to the material to be sewn.Thanks to the digitalization, Optimum adjustment values required to produce high-quality seams can be stored, on a material-by-material basis, in memory and can be reproduced wi th ease. For sewing plants which produce diversified products using diversified materials, this feature is quite helpful to achieve stable seam quality.

Features

REPRODUCE THE OPTIMAL COMBINATION OF SETTINGS

DETECT MATERIAL THICKNESS BY SENSOR

GUARANTEE CONSISTENT SEAM QUALITY

4.3 INCH COLOR LCD

EASY TOUCH PANEL LCD SCREEN

SEWING DATA CAN BE SAVED IN FILES IN MEMORY

ACTIVE PRESSER: OPTIMIZE PRESSER FOOT PRESSURE

DIGITAL UP AND DOWN FEED DRIVE

FEED LOCUS IS ADJUSTABLE AS DESIRED

SELECTION OF FEED LOCUS: DIGITALLY CONTROLLED FEED DOG MOTION

LARGELY REDUCE THE TIME LOSS FOR CHANGING THE ITEMS: REPRODUCE THE SAME SEAM QUALITY



Specifications

MODELDDL-9000C-FMSDDL-9000C-SMS
Type Full Digital Type - Adoption of a 4.3-inch large color liquid crystal touch panel ensures easy operation. The touch panel is provided with JUKI's unique intelligent sewing system features. Digital Type - Adoption of a black-and-white liquid crystal switch panel ensures easy operation. Since, unlike the CP panel, the black-and-white liquid crystal panel provides verbal explanation of its operation, it is easier for the operator to understand how to operate it
Digital Feed (Horizontal Direction) Yes Yes
Digital Feed (Vertical Direction) Yes Yes
Active Presser Foot Yes No
Active Tension Yes No
Support To An Android Tablet Yes Yes
Network Yes (Support through and Android tablet only)
Shorter-Thread Remaining Type Thread Trimming Yes Yes
Color Touch Panel Yes No - Black and White
Application Medium-weight Medium-weight
Lubrication Semi-dry Semi-dry
Max. Sewing Speed 5,000sti/min*1 5,000sti/min*1
Hand Switch Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm
Max. Stitch Length 5mm 5mm
Thread Trimming Method Double-edge rotary system Double-edge rotary system
Needle Bar Stroke 30.7mm 30.7mm
Feed Dog Height 0.8mm
Needle Thread Tension Active tension Spring Type
Presser Foot Pressure Electronic control Spring Type
Lift Of The Presser Foot By hand : 5.5mm, By knee : 15mm Auto : 1st stage 5.0 mm (*0.1~8.5mm), 2nd stage 8.5 mm (*8.5mm~13.5mm) * Adjustable on the operation panel By hand : 5.5mm, By knee : 15mm Auto : 1st stage 5.0 mm (*0.1~8.5mm), 2nd stage 8.5 mm (*8.5mm~13.5mm) * Adjustable on the operation panel
Needle*3 DB×1・DB×5(#11), #9~18(Nm65~110) DB×1・DB×5(#11), #9~18(Nm65~110)
Bobbin Thread Winder Built in the top of machine head (provided with the bobbin thread retaining plate) Built in the top of machine head (provided with the bobbin thread retaining plate)
Lubricating Oil JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7)
Size Of Bed 517×178mm(distance from needle to machine arm:303mm) 517×178mm(distance from needle to machine arm:303mm)
Machine Head Drive Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system)
Power Consumption 520VA 520VA
Net Weight Machine head: 40.5kg(with AK-154) or 90 lbs. Machine head: 40.5kg(with AK-154) or 90 lbs.
Warranty 90-days on mechanical components, 1 year on electronics. 90-days on mechanical components, 1 year on electronics.

Warranty Information

1 YEAR LIMITED WARRANTY
