Consew 146RB single needle, walking foot zigzag machine Stitch Type 1A

  • Image 1
Price:
$2,609.40
SKU:
P3113SW19429
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

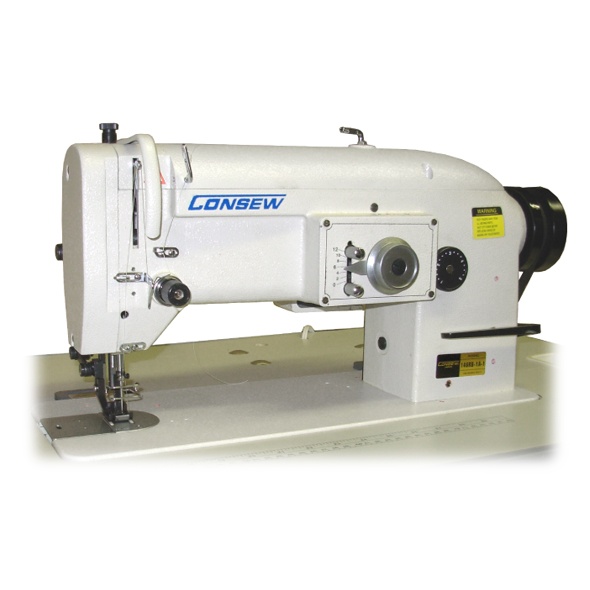

Consew 146RB single-needle, walking-foot zigzag machine Stitch Type-1A

TABLE & CLUTCH MOTOR

This Package includes a Fully Assembled Table and a Clutch Motor. The motor can be upgraded to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

SINGLE NEEDLE, DROP FEED, ZIG-ZAG MACHINE

Consew 146RB is a single-needle, walking foot zig-zag machine with a horizontal axis transverse rotary hook, large bobbin, wide zig-zag and reverse feed.

146RB - SERIES STITCHES

Stitch Type-1A
2-step / 1-stitch zig-zag (Currently Viewing This Product)
Stitch Type-2A
3-step / 2-stitch zig-zag
Stitch Type-3A
4-step / 3-stitch zig-zag

Specifications

  • Max Speed (S.P.M.) - 2500 (depends on thread, material and operation)
  • Clearance Under Foot - 25/64 (10 mm)
  • Needle Bar Stroke - 1 11/32 (34 mm)
  • Stitch Length, Max. - 5 s.p.i. (5 mm)
  • Needle - 135 x 17
  • Bobbin Metal - 212O34-312
  • Bobbin Pre-wound - M
  • Hook - B79
  • Work Space - 10" (255 mm)
  • Bed Size - 7" x 18 7/8" (178 x 480 mm)
  • Zig-Zag Max Width - 3/8" (9.5 mm)

Features

  • Large bobbin and horizontal axis transverse rotary hook
  • Wide Zig-Zag
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching

Warranty Information

5 YEAR LIMITED WARRANTY
