Consew 199R single needle, drop-feed Stitch Type 2A

  • Image 1
Price:
$2,069.40
SKU:
P3113SW14006
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

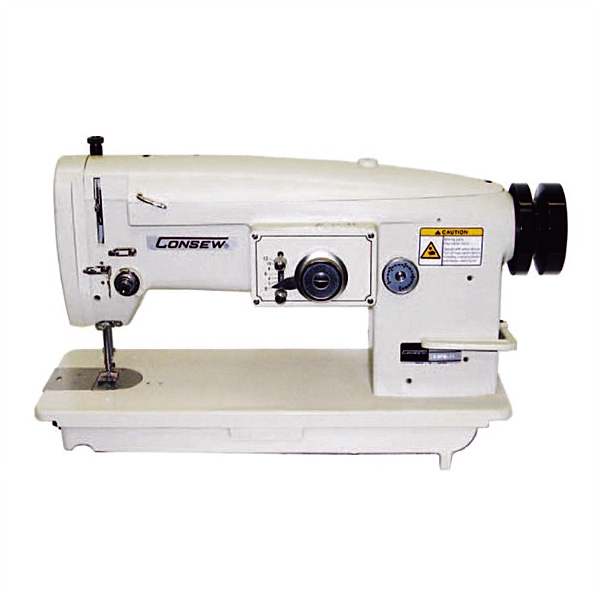

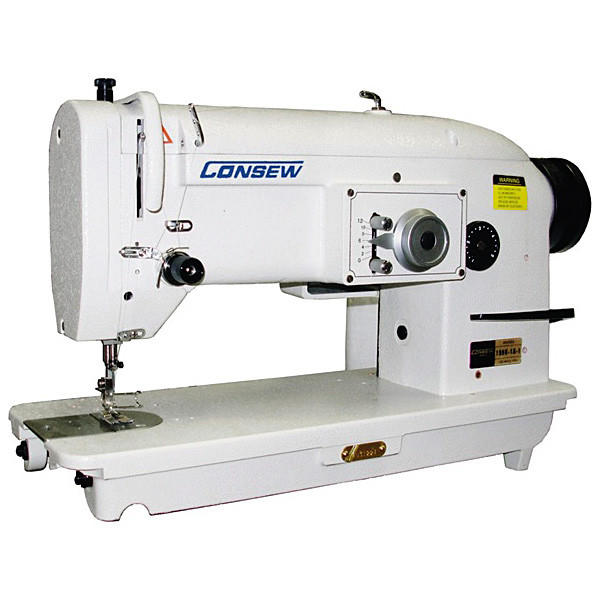

Consew 199R single-needle, drop-feed Stitch Type-2A

WITH TABLE & MOTOR FULLY ASSEMBLED

TABLE & CLUTCH MOTOR

This Package includes a Fully Assembled Table and a Clutch Motor. The motor can be upgraded to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

SINGLE NEEDLE, DROP FEED, ZIG-ZAG, LOCKSTITCH MACHINE

Consew 199R is a single-needle, drop-feed, zig-zag lockstitch machine with a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch function.

199R - SERIES STITCHES

Stitch Type-1A
2-step / 1-stitch zig-zag
Stitch Type-2A
3-step / 2-stitch zig-zag (Currently Viewing This Product)
Stitch Type-3A
4-step / 3-stitch zig-zag

Specifications

  • Max Speed (SpM) (speed depends on thread, material and operation)
    • Zig-Zag Stitch - 3000 for stitches -1A and -3A; 2700 for stitch -2A
    • Straight Stitch - 3200 for stitches -1A and -3A; 3000 for stitch -2A
  • Clearance Under Foot - 25/64" (10 mm)
  • Needle Bar Stroke - 1 11/32" (34 mm)
  • Max Stitch Length - 5 s.p.i. (5 mm)
  • Needle - 16 X 95
  • Bobbin Metal - B75
  • Bobbin Pre-wound - L
  • Hook - B70
  • Work Space - 10" (255 mm)
  • Bed Size - 7" x 18 7/8" (178 x 480 mm)
  • Zig-Zag Max Width - 3/8" (9.5 mm)

Features

  • horizontal axis transverse rotary hook
  • Wide Zig-Zag - Locking Zig-Zag width regulator
  • Straight stitcher when zig-zag is set to 0mm
  • Upper feed mechanism helps avoid slippage when sewing
  • Reverse stitching
  • Maximum width of zig-zag : 3/8" (9.5 mm)
  • Long arm with 10" free space between needle and arm

Warranty Information

5 YEAR LIMITED WARRANTY
