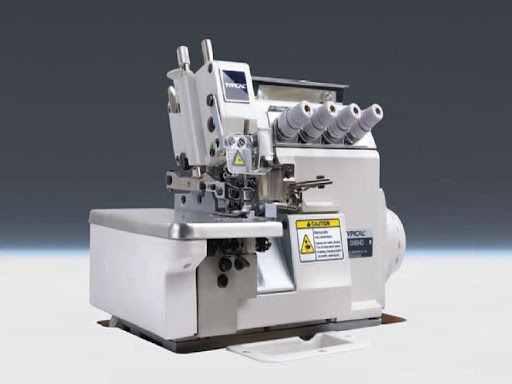

The Typical GN794D is a high-speed, industrial 4-thread overlocker (serger) designed for small workshops, tailor shops, and home-based businesses . Part of Typical's budget-friendly series, this machine is built on the well-established Siruba 700F platform, a common and reliable base for many industrial overlockers . It is specifically engineered for stitching and overlocking knit fabrics, making it an ideal choice for producing t-shirts, sportswear, and other stretch garments . Users praise its quiet operation, ease of threading, and robust performance on various fabric types, offering a significant step up from domestic overlockers without the premium price tag of top-tier Japanese brands .

Key Specifications

Key Features

Industrial-Grade Performance

• High-Speed Sewing: Capable of up to 5,500 stitches per minute, significantly increasing productivity compared to domestic machines .

• Built-in Servo Motor: Features an energy-efficient, built-in servo motor that runs quietly and provides precise speed control, even at low speeds. Users note the motor is virtually silent, with only a pleasant "chatter" from the mechanisms .

• Differential Feed System: Allows for precise adjustment of the front and rear feed dogs to handle various fabrics. This prevents puckering on lightweight knits and stretching on difficult fabrics.

• Versatile Fabric Handling: Capable of sewing a wide range of materials, from thin cotton knitwear (kulirka, interlock) to ribbed fabrics (ribana), handling multiple layers without jamming or breaking needles .

User-Friendly Design for an Industrial Machine

• Color-Coded Threading System: The machine features a clear, color-coded threading diagram. Each thread path is marked with dots matching the thread color, making the initial threading process intuitive and easy to master .

• Easy Needle Threading: The built-in LED light illuminates the needle area, simplifying the task of threading the needles .

• Two-Pedal Control: Typically operated with two foot pedals—one to control sewing speed and the other to activate functions like the automatic thread trimmer or presser foot lift, providing greater control and efficiency .

• Built-in LED Lighting: Bright LED lights illuminate the work area, reducing eye strain during long sewing sessions .

Convenient & Safe Operation

• Stitch Length Adjustment: Simple mechanical adjustment allows for quick changes to stitch length up to 5mm to suit different fabric types and applications .

• Adjustable Seam Width Guide: A retractable guide on the machine body helps maintain a consistent seam allowance, preventing accidental trimming of excess fabric .

• Integrated Safety Features: Designed with operator safety in mind, including a plastic shield to protect the eyes in case of needle breakage and a guard on the presser foot to prevent fingers from contacting the knife .

Robust Construction

• Siruba 700F Platform Base: Built on a widely-used and mechanically simple platform, ensuring reliability and easy access to spare parts . While not as refined as high-end Japanese machines (like those on the Pegasus platform), it offers excellent value and dependable performance for small-scale production .

• Automatic Lubrication: Features an automatic oiling system to keep moving parts well-lubricated for smooth operation and longevity.

• Complete Package: Comes as a complete unit with the machine head, industrial stand, table/work surface, and built-in motor, ready for installation .
