Product Overview

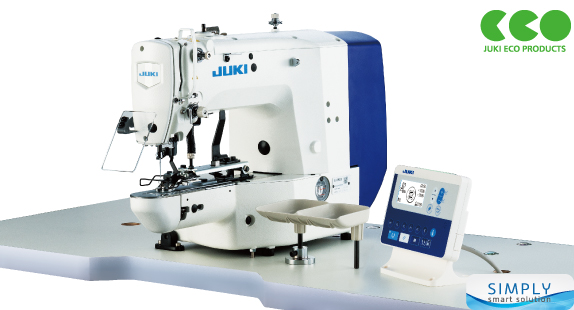

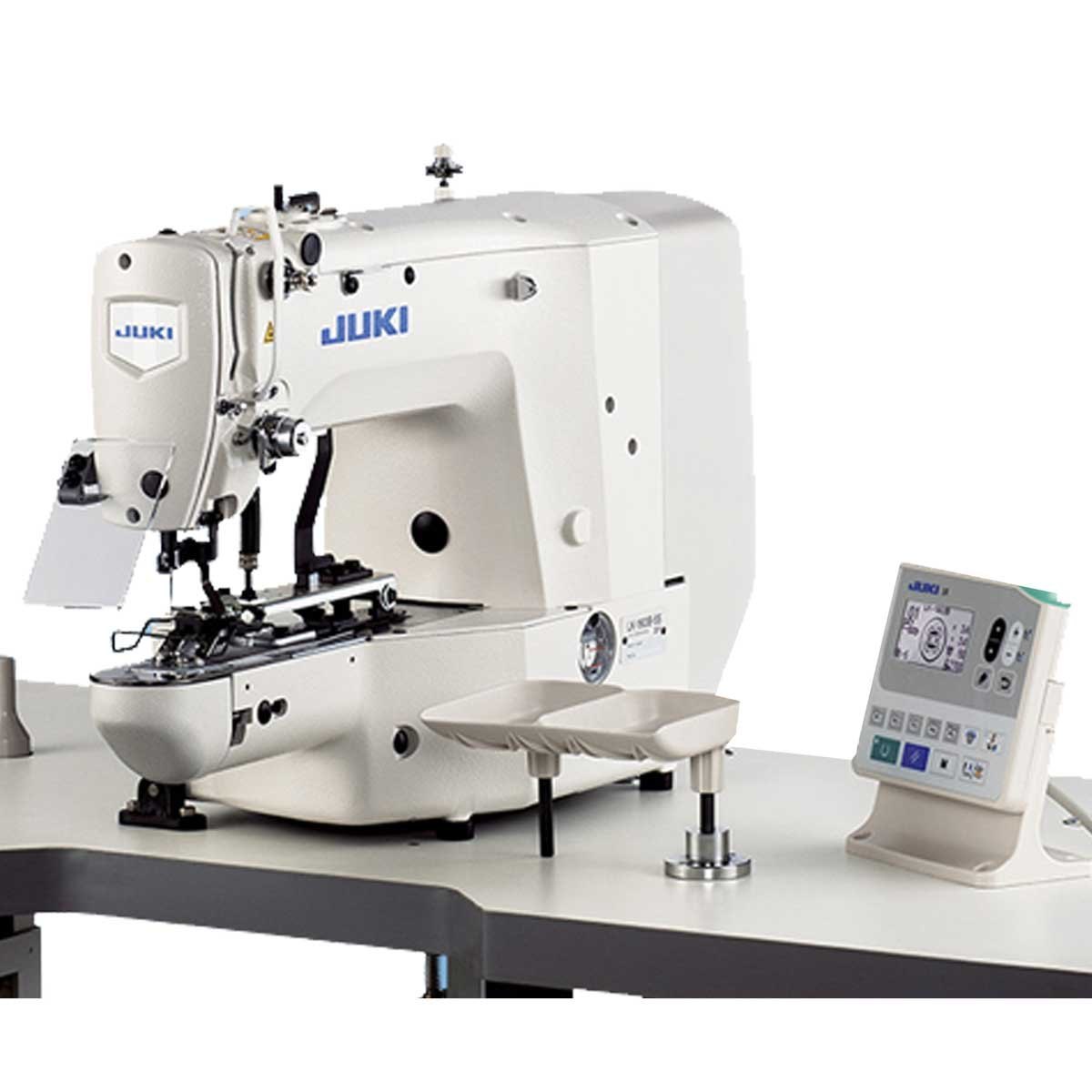

The JUKI LK-1903S is part of the "Simple Series," designed to provide JUKI's renowned seam quality with essential, user-friendly features. It is a direct-drive, high-speed lockstitch machine specifically engineered for attaching flat round buttons (2 or 4 holes). Its key distinction is the inclusion of a voice guidance system and USB connectivity, which enhance productivity and ease of use on the factory floor .

Key Features

• Voice Guidance System: A unique feature for this class of machine. It provides voice prompts to the operator regarding production counts, work progress, and machine operation rate, aiding in production management .

• Higher Productivity: Cycle time is reduced thanks to optimized speeds for starting, stopping, thread trimming, and the movement of the button clamp and work clamp .

• Versatile Stitching Capabilities:

  • Comes standard with 50 pre-programmed stitch patterns for various button types and stitching styles (e.g., X, C, Z, U, parallel) .

  • The pattern enlargement/reduction function allows for easy adjustment of the distance between stitch holes from 20% to 200% via the operation panel .

  • Compatible with data from the previous LK-1903 model (data conversion required) .

• Enhanced Operability:

  • Auto-Lifter: A standard stepping-motor-driven auto-lifter raises the work clamp foot to a maximum of 13mm, reducing operator fatigue .

  • LED Light: A bright, long-lasting LED light illuminates the needle entry area. It has 5 brightness levels and an off function .

  • Direct-Drive System: A compact AC servo motor is directly connected to the main shaft, enabling quick startup, precise stopping, and excellent responsiveness .

• User-Friendly Operation Panel:

  • Equipped with a USB port for easy data management (backup/restore) and software updates .

  • Assign frequently used patterns to the dedicated pattern keys (P1-P25) for one-touch selection .

Technical Specifications
