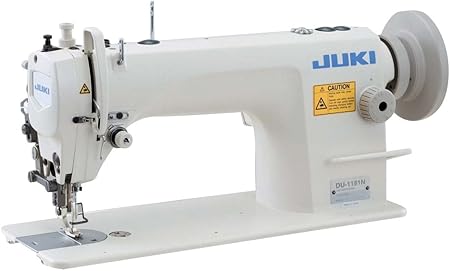

JUKI DU-1181N Product Information

Product Name: JUKI DU-1181N
Product Type: 1-Needle, Top and Bottom Feed Lockstitch Machine with Double-Capacity Hook
Applications: Designed for medium-weight and heavy-weight materials such as heavy canvas, webbing, leather, PVC, upholstery, and bags .

Key Features

1. Powerful Top and Bottom Feed Mechanism
Equipped with a robust top (walking foot) and bottom feed system, this machine ensures smooth and consistent feeding of difficult materials, multi-layered sections, or materials with high thickness differentials without pitch errors or seam slippage .

2. High Presser Foot Lift
The presser foot can be lifted up to 15mm using the knee lifter. This allows for easy handling of thick seams, piping, and tape-attaching processes .

3. Maximum 9mm Stitch Length
The machine offers a maximum stitch length of 9mm in both forward and reverse stitching, making it applicable to a broader range of sewing processes .

4. Double-Capacity Hook
It comes standard with a horizontal-axis double-capacity hook (large rotary hook). This reduces the frequency of bobbin thread changes, increasing operational efficiency .

5. Automatic Lubrication System
A pump-unit type automatic lubrication mechanism dramatically improves maintainability. The oil amount for the face plate and hook is adjustable. The top feed mechanism utilizes a grease tank and oil wick lubrication .

6. Low Vibration and Noise
The machine head is designed with optimal balance to significantly reduce vibration and noise, providing a more comfortable working environment for the operator .

7. Excellent Operability

• Adjustable Feed: The height and inclination of the feed dog can be adjusted .

• Alternating Vertical Movement: The amount of alternating vertical movement between the walking foot and presser foot is adjustable from 2 to 5mm to accommodate varying material thicknesses .

• Easy Access: Horizontal feed cam, top and bottom feed cam, and top feed cam can be adjusted after opening rubber caps on top of the machine head .

• Stitch Length: Easily adjustable via a dial .

Specifications
