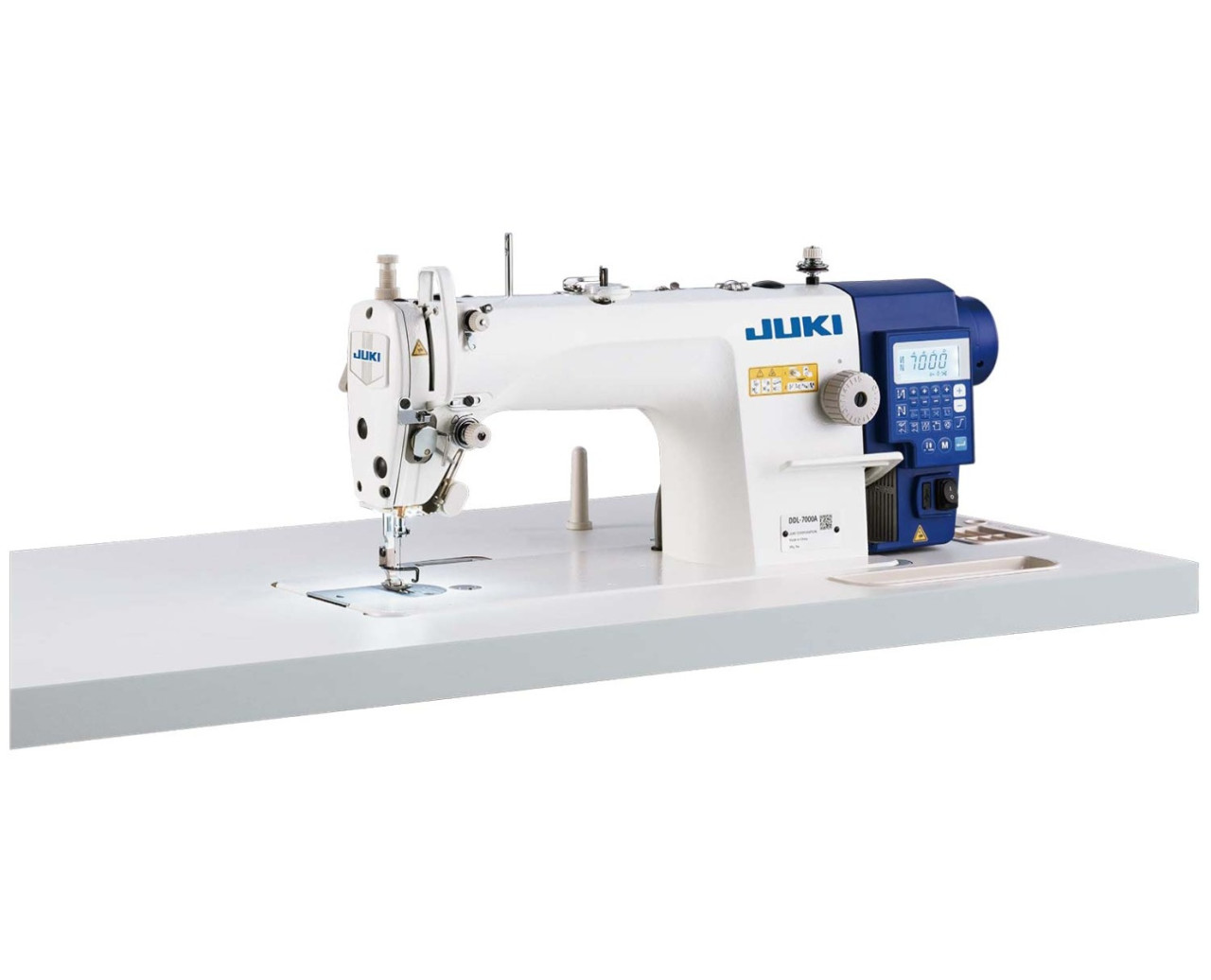

JUKI DDL-7000A Series

Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer

The JUKI DDL-7000A Series is an industrial straight-stitch sewing machine designed for high productivity and exceptional stitch quality across a wide range of materials. It integrates an energy-saving direct-drive motor and a control panel into the machine head, offering a compact, efficient, and user-friendly solution for manufacturers and professional tailors .

Key Features

• Direct-Drive Energy-Saving Servo Motor: The highly efficient servo motor is directly coupled to the machine head, transmitting power without any loss. This results in improved responsiveness, quicker startup, and increased needle penetration force compared to clutch motors .

• Integrated Control Box & Operation Panel: Both the compact control box and the operation panel are built directly into the machine head. This saves space, simplifies installation, and comes as a standard feature with a user-friendly digital panel for adjusting settings .

• Wide Material Responsiveness: Equipped with a thread take-up lever that provides a wider sewing range and a 35mm needle bar stroke, the DDL-7000A can seamlessly sew everything from lightweight fabrics to medium-weight denim and heavy materials (depending on the sub-model) .

• High-Performance Touch-Back Switch (Anti-Breakage Function): The machine features JUKI's renowned needle breakage prevention function. This system controls the main shaft angle during reverse stitching, preventing the needle from breaking even when the touch-back switch is used for reinforcement .

• Standard LED Lighting: An LED light is built-in, casting light directly downward onto the needle entry area from both sides of the needle bar for optimal visibility. The brightness can be adjusted in five levels to suit the working environment .

• USB Port: The machine is provided as standard with a USB slot, which can be used to charge mobile devices .

Product Specifications
