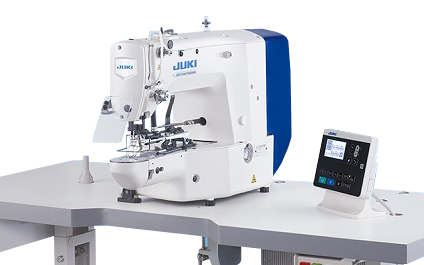

JUKI LK-1900BN-HS Electronic Tacker for Heavy Weight Materials

  • Image 1
In Stock

Product Description

The JUKI LK-1900BN-HS is the new standard in electronic tacking machines.  Equiped with a variety of pre-loaded patterns, this machine is well suited to tack on webbing, jeans, workwear, shirts, blouses - cottons and knits - without any major adjustments.

The machine comes with 50 pre-programmed patterns including:

  • horizontal tacks in varying lengths, widths and stitch counts
  • vertical tacks in varying lengths, widths and stitch counts
  • eyelet patterns
  • half moons
  • see complete pattern list below

The most standard model we stock is the LK-1900BN-HS and the LK-1900BN-SS.  These two machines are widely used for 90% of all tacking opeartions.   Other models are available for different operations depending on your exact needs and requirements.  Please see the spec sheets below for details.

The machine achieves sewing speed of 3,200sti/min. The machine's starting, stopping, thread-trimming and automatic presser lifting speeds have been increased to significantly shorten total cycle time. The needle's penetrating force into the material has been increased. This provides an improved responsiveness to heavy-weight materials for the H type machine. The W type has adopted a large shuttle hook, which reduces the frequency of bobbin-thread changing to enable highly efficient sewing work.

Technical Specs:

  • Model Name : LK-1900BN-HS
  • Application : Heavy-weight
  • Max. sewing speed : 3,200sti/min
  • Sewing area : 30mm (L)×40mm (W)
  • Max. stitch length : 0.1mm~10mm (0.1step)
  • Lift of the work clamp foot : Standard 14mm (17mm when the reverse-rotation needle-up function)
  • Needle : DP×17 (#21)
  • Number of standard patterns : 50 patterns
  • Number of data that can be input: 200 patterns(for up to 150 patterns, sewing data can be added)

Machine setup:

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

  • Machine Head
  • Control Panel
  • Standard Horizontal Tacking Clamp with 1" clearance  (others can be ordered)
  • Table Top
  • Heavy Duty Stand
  • Integrated DIRECT DRIVE SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.
  • Integrated Motors - 110 Volts

Warranty Information

1 Year Warranty
