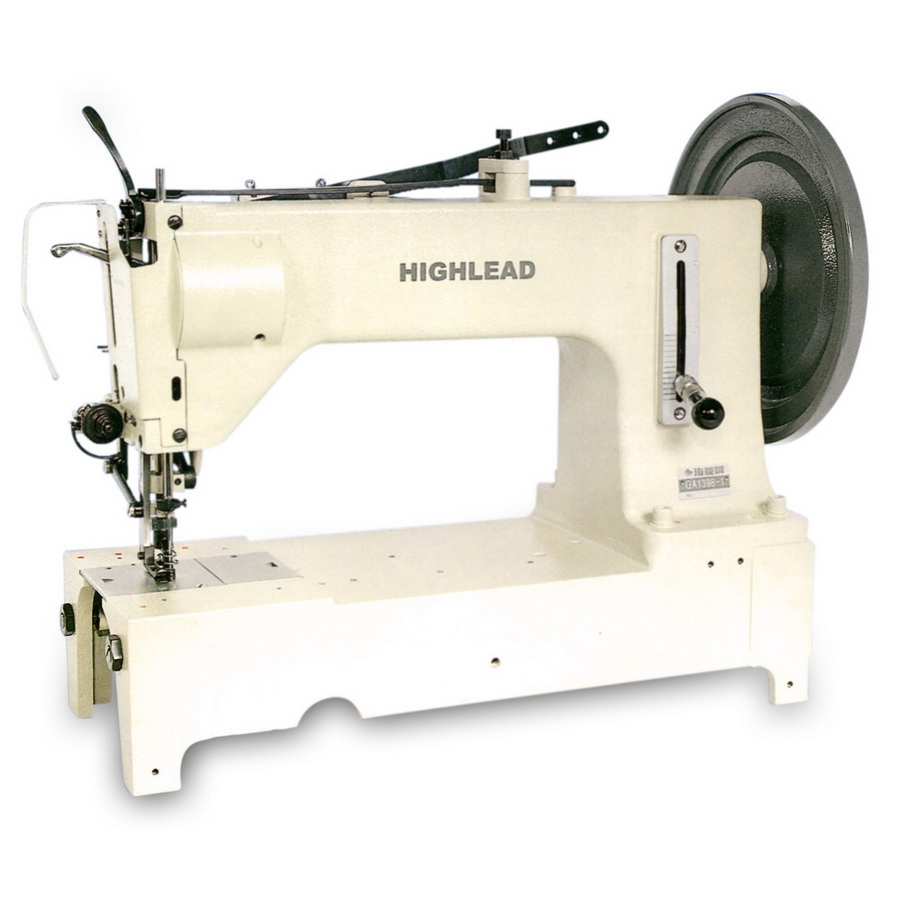

Highlead GA1398-1-2RA Industrial Sewing Machine With Table and Motor

ONE NEEDLE LARGE OSCILLATING SHUTTLE HOOK DROP FEED WITH ALTERNATING PRESSER FOOT (7 CLASS TYPE) WITH TWO ROW NEEDLE PLATE AND FEED DOG COMBINATION WITH AIR FOOT LIFTER AND AIR REVERSE FEEDING

his extra heavy duty top and bottom feed lockstitch machine comes with a high arm clearance and extra wide bed to make it easy to sew large articles. The large machine pulley helps the machine to attain strong striking power – thus making sewing on multi-layer extra heavy material, whether slippery or gummy simple. The cam thread take up and large shuttle hook with large bobbin capacity mean less down time for bobbin changes. Its extra high foot lift and long needle bar stroke make it the ideal machine in the manufacture of safety belts, webbing, leather trunks, buffing wheels, tents, sails, car covers, book bindings, and similar articles.

Specifications

• Max Sewing Speed: 700 RPM
• Stitch length: 0-15 mm
• Needle Bar Stroke: 66 mm
• Presser foot lift by hand: 29 mm
• Presser foot lift by knee: 32 mm
• Needle Size: SM x 1000 27#
• Shuttle Hook: KSP-7-31
• Lubrication: Manual
• Working Space: 15.748 in x 7.87402 in
• Motor: 3/4 HP, 1725 RPM, 110V Single Phase or 220V Three Phase

THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.
