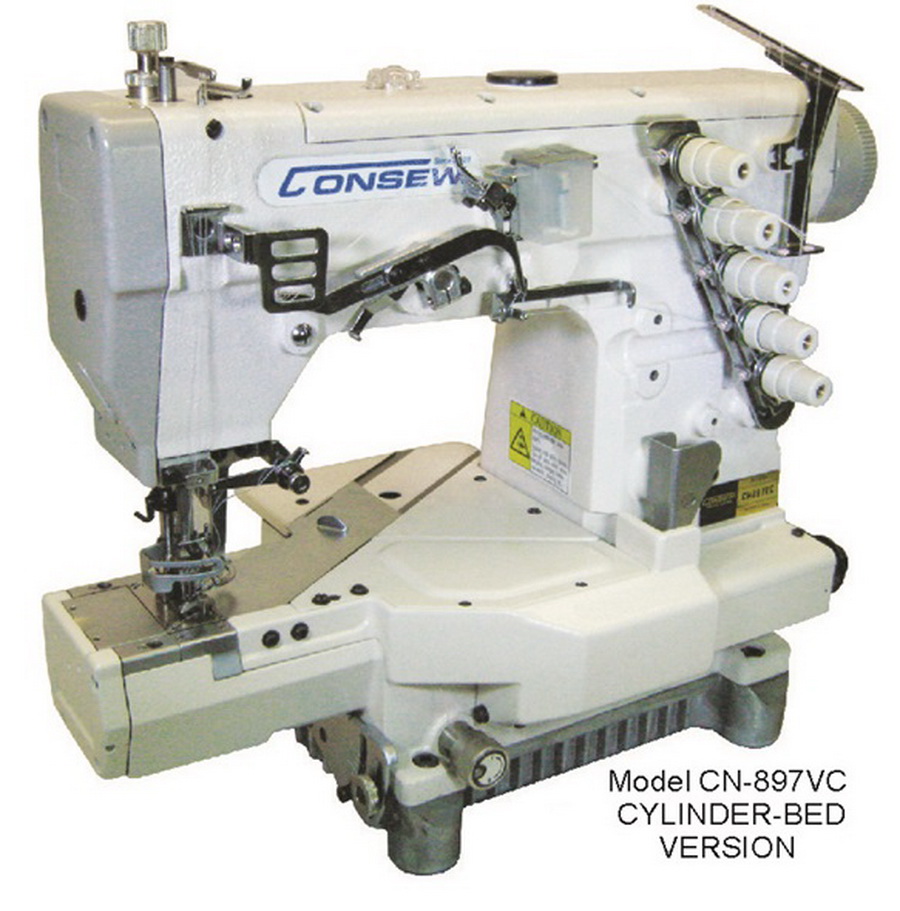

Consew CN897CV 1 Cylinder Bed Coverstitch Machine

  • Image 1
In Stock

Product Description

Consew CN897CV-1 Cylinder Bed 2/3 Needle, 4/5 Thread Coverstitch Machine with Assembled Table and Servo Motor

The Consew CN897CV-1 coverstitch machine contains a variety of features that include, but are not limited to: V-series High Speed Coverstitch Machines With Fully Automatic Lubrication, Differential Feed With Micrometric Adjustment, Pushbutton Stitch Regulator and Thread Lubricating And Needle Cooling System. Also available: CN-897BVC for Binding Attachments.


  • For sewing light to heavy-weight materials.
  • Cylinder-bed for general seaming
  • Suitable for hemmimg, tape binding, elastic inserting, etc.


  • Speed, Max. up to 6000 s.p.m. (See machine specifications below)
  • Fully automatic lubrication with visual flow controls
  • Lubricating oil continuously filtered by replaceable filter
  • External cooling of oil supply
  • Differential feed with micrometric adjustment for shirring and stretching. Ratio up to 4 to 1.
  • Push-button stitch regulator
  • Intermittent action possible
  • Standard type UY128GAS needles
  • Reduced noise and vibration when operating at high speeds
  • Silicone based needle cooling and thread lubricating
    • 2 Needles, 2 Loopers, 4 Threads
    • 3 Needles, 2 Loopers, 5 Threads
  • NEEDLES: Comes with 3-needle, 5.6 mm
    • (Optional Needle Gauges available)
    • 2 Needles: 3.2, 4.0, 4.8, 5.6, 6.4 mm
    • 3 Needles: 5.6, 6.4 mm
    • UTA - Under thread trimming device (pneumatic)
    • ST - Top cover thread trimming device
    • UTM - Under thread trimming device (electric)
    • W - Thread wiper (electric)
    • EC - Tape Cutter (electric)


Category Specification
Number of Needles 2, 3
Feeding Mechanism Differential
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 6000
Presser Foot Lift 7.0 mm
Stitch Length 1.4 ~ 3.6mm
Needle Used UY128GAS
Standard Distance Between Needles 5.6mm 3-needle
Differential Ratio 1 : 0.7 ~ 2.0
Two Needle
Needle Distances
Comes with 3-needle, 5.6 mm 3 Needles: 5.6, 6.4 mm

Warranty Information

5 years limited manufacturer’s warranty.
