Juki DDL-8100e Industrial Straight Stitch Sewing Machine Juki DDL-8100e: High-Speed Industrial Sewing Machine Juki DDL-8100e Lockstitch Machine with Table and Motor Juki DDL-8100e Industrial Sewing Machine – 5500 spm

Posted on 1st Mar 2026 @ 5:00 PM

Juki DDL-8100e Industrial Sewing Machine.

The Juki DDL-8100e is a single-needle, lockstitch industrial sewing machine renowned for its durability, reliability, and consistent high-quality seam production. It is a popular choice for garment manufacturing, alterations, and small businesses working with light to medium-weight fabrics .

Key Features and Benefits

  • Proven Reliability: Built on Juki's reputation for quality, this machine is a durable workhorse designed for consistent, long-term use in various settings .

  • Smooth and Quiet Operation: The machine frame is engineered for optimal balance and strength, which significantly reduces vibration and noise during operation, enhancing operator comfort .

  • High-Quality Seams: The sewing mechanism is fine-tuned to allow for low-tension sewing. This flexibility enables the machine to respond to different materials and produce beautiful, consistent stitches .

  • Enhanced Operability: Designed to reduce operator burden and increase productivity. Key features include a high presser foot lift for bulky materials, an easy-to-adjust stitch dial, and extra attachment mounting seats for future accessories .

  • Manual Operation: This model is a basic, mechanically operated machine. Tasks like trimming threads, backtacking, and using the knee lift are performed manually, appealing to users who prefer a simple, hands-on approach .

  • Automatic Lubrication: An automatic lubrication system ensures the machine is always properly oiled, reducing maintenance and prolonging the life of critical components .

Technical Specifications

The table below outlines the detailed technical specifications for the Juki DDL-8100e.

SpecificationDetails
Application Light-weight to medium-weight fabrics
Max. Sewing Speed 4,500 stitches per minute (sti/min)
Stitch Type Lockstitch (Straight Stitch)
Max. Stitch Length 5 mm
Needle System DB x 1 (#9 to #18)
Needle Bar Stroke 30.7 mm
Hook Type Automatic Lubricating Full Rotary Hook
Presser Foot Lift (by hand) 5.5 mm
Presser Foot Lift (by knee) 13 mm
Lubrication System Automatic
Recommended Oil JUKI MACHINE OIL No. 7 (ISO VG7)
Noise Level A-weighted value of 80 dB (at 4,200 sti/min)
Machine Head Weight 26 kg

What's Included

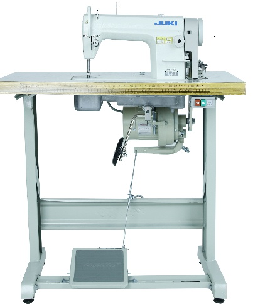

The Juki DDL-8100e is often sold as a machine head only or as a complete unit. A full package typically includes :

  • Juki DDL-8100e Machine Head: The core sewing unit.

  • Industrial Table: A sturdy table designed for industrial machines.

  • Servo Motor: An energy-efficient, quiet motor with speed control (e.g., 550W) .

  • Accessories: This can include a bobbin winder, thread stand, machine oil, instruction manual, oil pan, knee lifter, and tools .

  • Light: A goose-neck lamp for illuminating the work area .

.
