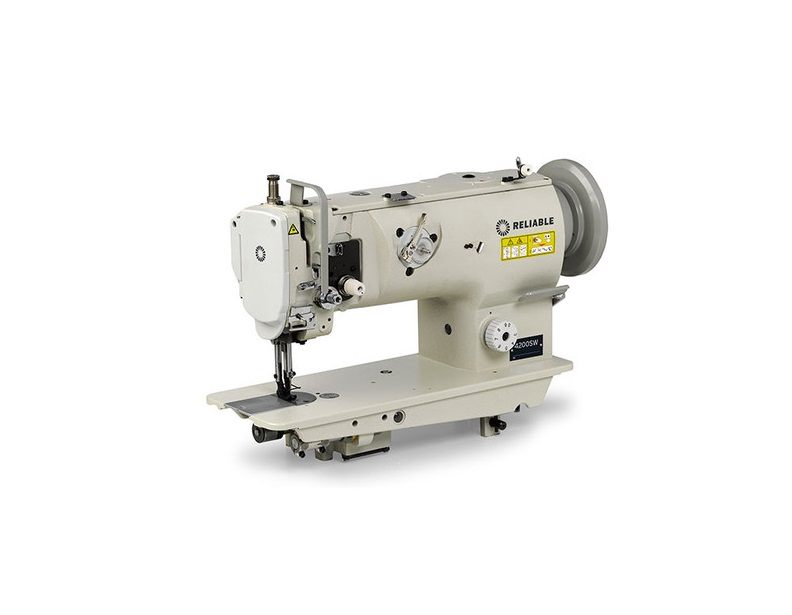

Reliable 4200SW Single Needle, Compound Feed Walking Foot Sewing Machine
Product Description
Reliable 4200SW - Single Needle, Compound Feed - Walking Foot Sewing Machine
SUPERIOR BUILD AND STITCH QUALITY IN A ECONOMICAL PACKAGE
For heavier work, the most common type of sewing machine is the single needle, walking foot (compound feed) lockstitch machine. Top and bottom feed, and a higher foot lift allows the 4200SW to sew from medium to heavy weight fabric.
QUALITY YOU CAN COUNT ON
For sewing leather, upholstery, canvas, and synthetics, the 4200SW with safety clutch offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.
Best used for
- Leather, canvas and synthetic materials
- Upholstery, boat tops
- Tarpaulins, awnings, tents
Key Features
STITCH DIAL REGULATOR
The stitch dial provides a simple adjustment (0-9 mm) for the length of the stitch.
REVERSE LEVER MECHANISM
Creating the perfect back tack is easy with the 4200SW’s reverse lever mechanism.
BUILT-IN BOBBIN WINDER
For added convenience, the bobbin winder on the 4200SW is built-in to the front of the machine head.
AUTOMATIC SAFETY CLUTCH
If thread or a needle should get stuck in the hook assembly, the safety clutch will automatically disengage the hook driving mechanism, ensuring there is no damage to the the machine or the hook.
Specifications
- MAXIMUM SEWING SPEED 2,500 RPM
- STITCH LENGTH 0 - 9 mm
- NEEDLE BAR STROKE 36 mm
- PRESSURE FOOT LIFT BY HAND 9 mm
- PRESSURE FOOT LIFT BY HAND 16 mm
- NEEDLE SYSTEM # 135 x 17
- SAFETY CLUTCH Yes
- FEED DOG Single row
- HOOK TYPE Rotary - auto lubricated
- LUBRICATION Manual
- STITCH DIAL REGULATOR Yes
- REVERSE LEVER Yes
- COUNTRY OF ORIGIN China
- MANUFACTURER'S WARRANTY Limited 1 year
Additional Features
- 2,500-RPM high-speed operation
- Large capacity hook
- Large hand-wheel
- 16 mm foot lift (knee)
- Single row feed dog
- Manual lubrication
- Instruction / parts manual included
- Tool kit, drawer, thread stand included
- Individually tested and sewn off before shipping
SEWQUIET 6000SM BRUSHLESS DC SERVOMOTOR INCLUDED
BEAUTY AND BRAWN
The SewQuiet 6000SM brushless DC servomotor is a modern-day marvel of ingenuity and technology, crafted and designed to exceed your expectations. This is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that’s needed to work with the toughest materials. And for those looking to add a synchronizer to your motor, it’s now available as a low cost stand-alone option.
CALIBRATED CONTROL
The SewQuiet 6000SM represents the fourth generation of Reliable’s energy saving servomotor innovation. Precision step-by step stitching for detailed sewing, the ability to plug in a grounded light directly to the rear of the motor, UL/CSA certified electrical components and the total silence that gives the SewQuiet its name… the new 6000SM takes everything we’ve learned about motors over the past 60 years to new heights.
Key Features
MORE COILS = MORE TORQUE
This is the only servomotor to incorporate a 12-coil (vs. 6 or 9) design, providing the torque you need to get through heavier sewing tasks with ease.
550W SERVOMOTOR
The SewQuiet’s servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.
VARIABLE SPEED CONTROL
Built-in push button on/off switch and variable speed control. Easy to read LED display.
BUILT-IN LIGHT RECEPTACLE
The 6000SM is equipped with a fused and grounded receptacle to plug in an UberLight LED light or a light of your choice.
BELT ADJUSTMENT
Regardless of the brand of sewing machine you are mounting the SewQuiet 6000SM to, the belt tensioning device is simple and easy to set-up.
PCB INSULATION
Inside the 6000SM you will find PCB insulation that houses and protects the internal electrical components of the motor.
STRAIN RELIEF
This smart safety feature prevents pullout and wear on the electrical cord.
NO EXTRA CHARGE
And the best part of the new SewQuiet 6000SM? It's included at no additional cost with all Reliable industrial sewing machines.
SIMPLE SETUP
Everything you need to get your SewQuiet 6000SM up and running is supplied in the box.
Specifications
- ELECTRICAL - 120V
- H.P. - 3/4
- POWER - 550W
- POWER CONSUMPTION - 4.5 amps
- SPEED CONTROL - Digital
- PULLEY TYPE - Aluminum
- PULLEY SIZE - 60mm
- ON-OFF SWITCH - Built-in
- ACCESSORIES - Treadle rod mounting hardware, belt guard
- DIMENSIONS - 9.75" x 9" x 6"
- WEIGHT - NET - 7.8 lb - 3.5 kg
- SHIPPING DIMENSIONS - 13.2" x 11.4" x 8"
- SHIPPING WEIGHT - 10 lb - 4.5 kg
- MANUFACTURER'S WARRANTY - Limited 1 year
