Juki DDL 8100B 7 Lockstich Industrial Sewing Machine

  • Image 1
Price:
$809.40
SKU:
P3113SW80010
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

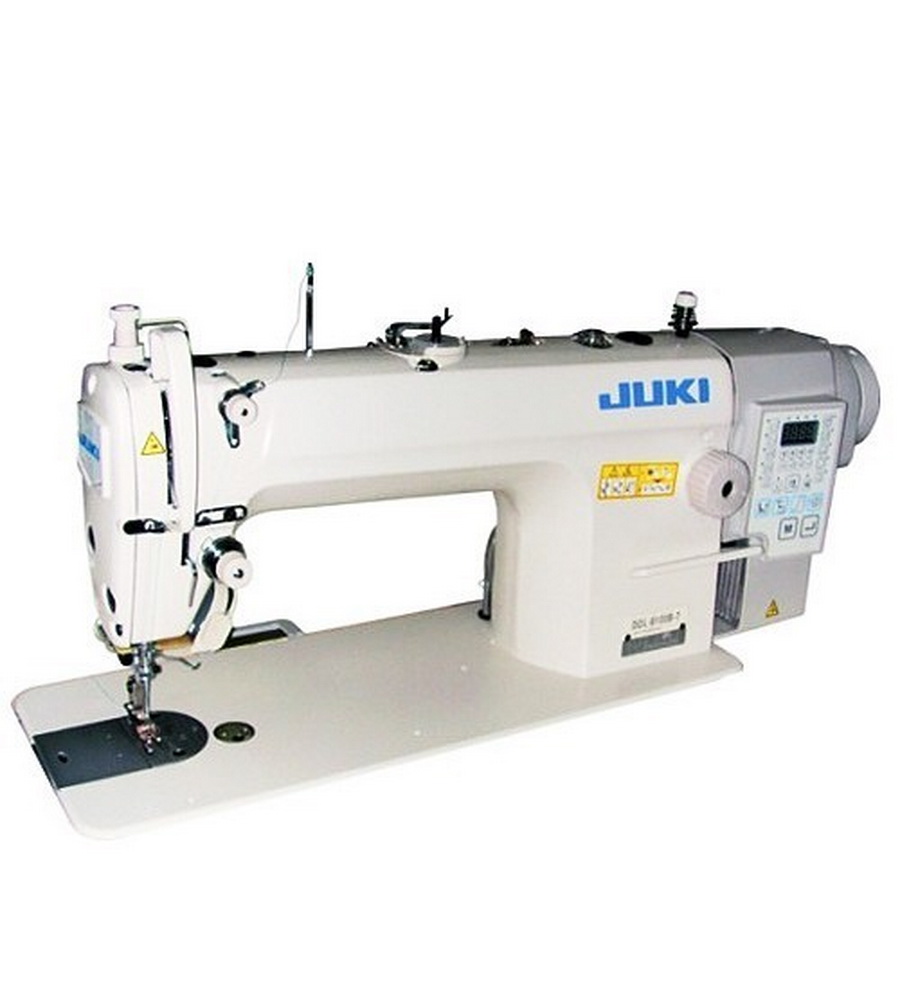

Juki DDL-8100B-7 Lockstich Industrial Sewing Machine

The DDL-8100B-7 industrial sewing machine is an eco-friendly product which complies with JUKI ECO PRODUCTS standards for protecting the environment. It features an under Timmer, auto back tack, foot lift, wiper, and built in LED lights.

Features

ENERGY-SAVING SERVOMOTOR IS INSTALLED IN THE DIRECT-DRIVE STYLE.

The energy-saving and highly efficient servomotor is installed in the direct-drive style to transmit power without loss to the sewing machine, thereby providing improved responsiveness, quicker start-up and increased needle penetration force.

THE COMPACT-SIZED CONTROL BOX AND OPERATION PANEL.

Both the compact-sized control box and the operation panel are integrated with the machine head. The machine is provided as standard with the operation panel.

THE THREAD TAKE-UP LEVER WHICH PROVIDES A WIDER SEWING RANGE IS ADOPTED.

The use of the newly-developed thread take-up lever increases the needle bar stroke (35mm). With this feature, the sewing machine is able to sew many different types of materials ranging from light-weight ones to medium-weight denim.

THE NEW TENSION SPRING IS ADOPTED.

The new tension spring is adopted to support the sewing of materials which differ in thickness ranging from light-weight materials to medium weight ones.

IMPROVED MAINTAINABILITY.

Feed-cam timing adjusting hole: The adjusting hole is provided on the top of the arm. This hole facilitates adjustment of the feed-cam timing. Direct-drive type: Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

NEWLY-DEVELOPED HOOK IS ADOPTED.

The newly-developed hook is adopted. This hook can handle even a higher-count thread with consistency.

Highlighted Features

  • Application: Light to Medium Weight
  • Stitch Length: 5
  • Presser Foot: By Hand - 5.5mm, By Knee - 13mm
  • Needle: DB×1 (#14) #14~#18
  • Maximum Sewing Speed: 4,000 sti/min
  • Lubricating Oil: JUKI Machine Oil 7 (equivalent to ISO VG7)
  • Weight of machine head: 70.5479 lbs.
  • Outside dimensions of package: 32.7953 in × 10.9449 in × 18.0709 in

Warranty Information

5 YEAR LIMITED WARRANTY
