Highlead GC20518 Series Industrial Sewing Machine

  • Image 1
Price:
$1,319.40
SKU:
P3113SW26634
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

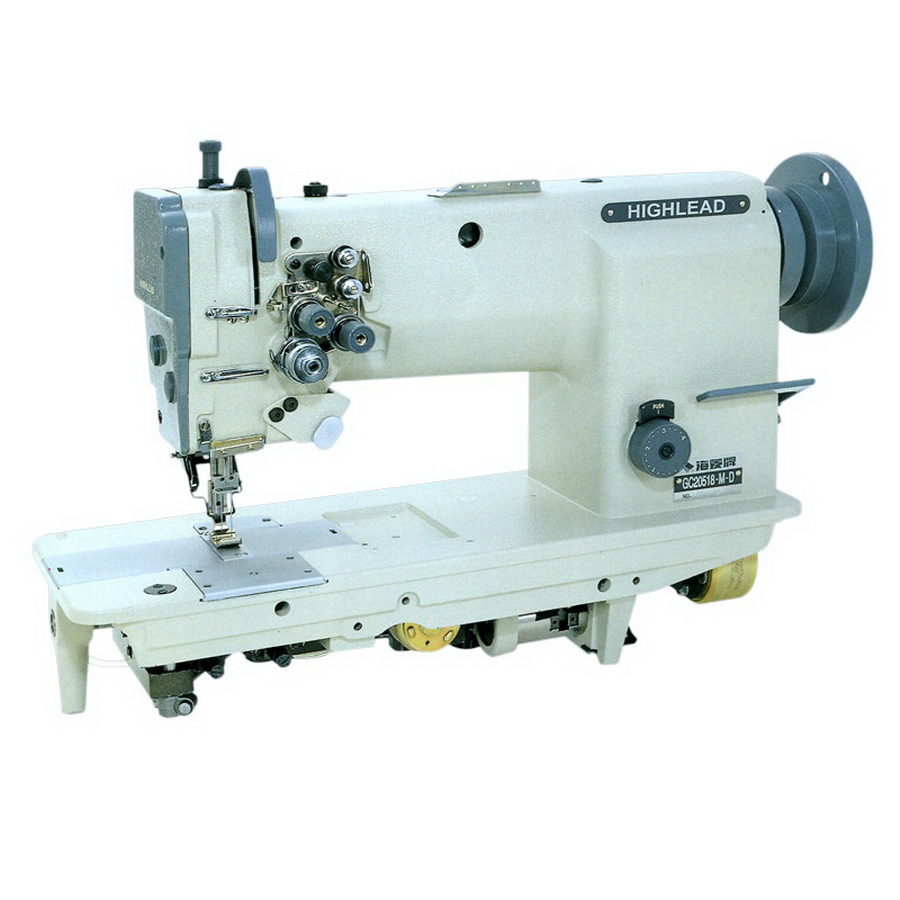

Highlead GC20518 Series Industrial Sewing Machine with Assembled Table and Motor

TWIN-NEEDLE HIGH SPEED LOCKSTITCH SEWING MACHINE

his two needle, needle feed lock stitch series is an automatically lubricated machine with two vertical axis rotating hooks and a sliding bar thread take up. The synchronization of the needle bar and feed dog assures even stitching and prevents the materials that are being sewn from shifting. A knob type stitch regulator and a lever type reverse feeding mechanism allows for easy operation. The arm shaft and hook shaft are supported by ball bearings and together with the drive belt and plunger pump lubrication system quiet and smooth operation is easily maintained.

For those seeking additional functions and increased productivity model numbers GC20518-M-D and GC20518-B-D are available as undertrimming machines. Available in standard size (Model GC20518-M) and large capacity hooks (Model GC20518-B) it is used in the manufacture of shirts, uniforms, overalls, women's inner wear, and jeans.

Specifications and Model Comparison

MODELAPPLICATIONMAX SEWING SPEEDSTITCH LENGTHNEEDLE BAR STROKEPRESSER FOOT LIFT BY HANDPRESSER FOOT LIFT BY KNEENEEDLE SIZEROTATING HOOKLUBRICATIONAUTO TRIMMERMOTORNEEDLE GAUGE
GC20518-M Light to medium heavy weight 4000 rpm 0 - 5 mm 33.4 mm 7 mm 13 mm DB x 5 11#-14# Standard vertical-axis hook with self-lubrication Auto lubricated N/A 370W Clutch motor Standard 6.4 mm special 3.2 4 4.8 5.6 8 9.5 12.7 16 19 25.4 28.6 32 38 mm
GC20518-B Medium heavy weight 3000 rpm 0 - 7 mm 35 mm 7 mm 13 mm DB x 5 18#-22# Large hook with bobbin thread pull-back Auto lubricated N/A 370W Clutch motor Standard 6.4 mm special 3.2 4 4.8 5.6 8 9.5 12.7 16 19 25.4 28.6 32 38 mm
GC20518-B-D Medium heavy weight 3000 rpm 0 - 7 mm 35 mm 7 mm 13 mm DB x 5 18#-22# Large hook with bobbin thread pull-back (Thread Trimming) Auto lubricated Yes Speed Adjustable Motor Standard 6.4 mm special 3.2 4 4.8 5.6 8 9.5 12.7 16 19 25.4 28.6 32 38 mm



Compare models and choose your model in the dropdown below the add to cart.

THIS MACHINE COMES WITH A TABLE AND MOTOR ASSEMBLED.

Warranty Information

5 YEAR LIMITED WARRANTY
