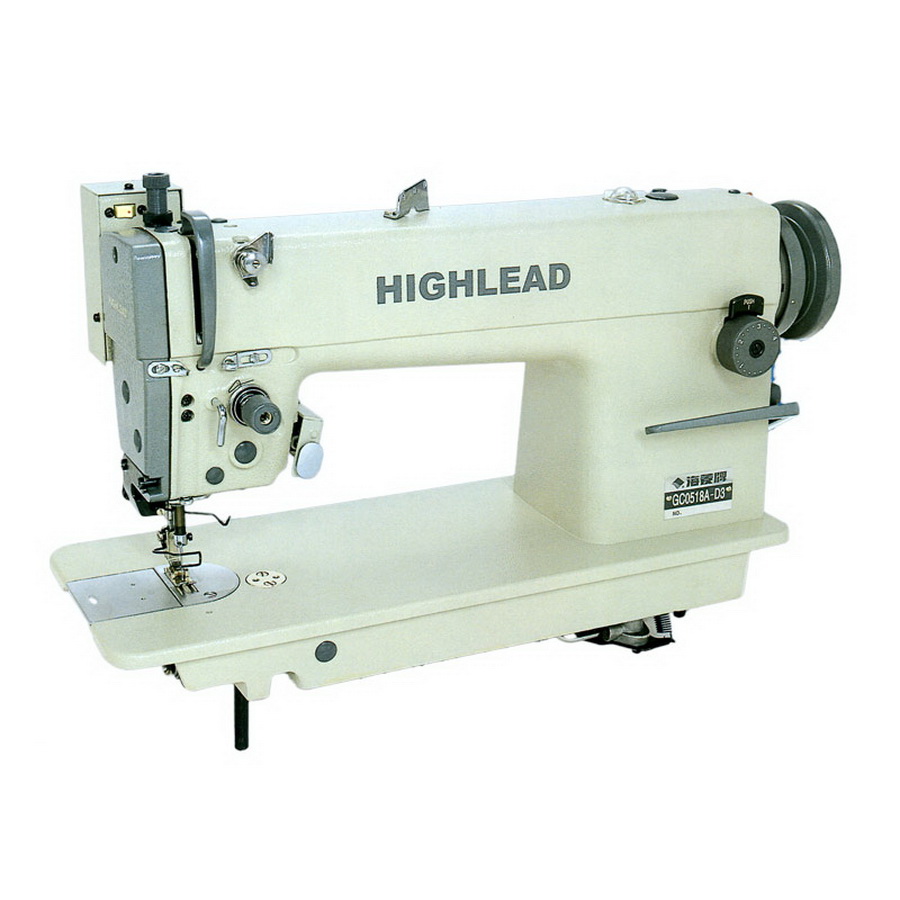

Highlead GC0518 Series Industrial Sewing Machine

The Highlead GC0518 Series is a line of industrial, single-needle lockstitch sewing machines distinguished by their needle feed mechanism. This system provides exceptional feeding stability, making these machines ideal for sewing materials that are difficult to handle, such as slippery fabrics, plastics, and technical textiles, while also excelling in high-speed, long-run applications like hemming sheets or curtains

Price:

$839.40

SKU:

P3113SW94961

Brand:

Highlead

Condition:

New

Availability:

In Stock

Product Description

Highlead GC0518, GC0518-H, GC0518-MC, GC0518-MC-D, GC0518A-D3, GC0518-B, GC0518B-D3 Industrial Sewing Machine With Table and Motor
HIGH SPEED NEEDLE BAR FEED LOCKSTITCHER SEWING MACHINE
This needle feed machine incorporates a link type needle feed mechanism, link tread take up and rotating hook to form a high quality lock stitch. The arm shaft and hook are driven by bevel gears. The dial adjusted stitch regulator together with the lever type reverse feeding mechanism and automatic lubrication ensure smooth sewing at any speed and in either direction. The needle feed mechanism allows for a more stable sewing environment thus preventing material layers from shifting or slipping on one another. It is used on such material as silk, nylon, light plastics, and all types of synthetic fabrics. Model GC0518-A-D is also available as an automatic underbedtrimming machine in which additional functions come as standard equipment.

Specifications and Model Comparison

MODEL	MAX SEWING SPEED	STITCH LENGTH	NEEDLE BAR STROKE	PRESSER FOOT LIFT BY HAND	PRESSER FOOT LIFT BY KNEE	NEEDLE SIZE	LUBRICATION	ROTATING HOOK	AUTO TRIMMER	MOTOR	THREAD TAKE-UP STROKE	WIDTH TO BE CUT
GC0518	5000 rpm	0 - 4 mm	31.8 mm	5 mm	11 mm	DP x 1 11#-14#	Auto lubricated	Auto lubricated hook	N/A	370 W Clutch motor	N/A	N/A
GC0518-H	3500 rpm	0 - 5 mm	33 mm	5 mm	11 mm	DP x 5 18#	Auto lubricated	Auto lubricated hook	N/A	370 W Clutch motor	N/A	N/A
GC0518-B	3000 rpm	0 - 5 mm	35 mm	5 mm	11 mm	DP x 5 22 #	Auto lubricated	Auto lubricated large hook	N/A	370 W Clutch motor	N/A	N/A
GC0518A-D3	5000 rpm	0 - 4 mm	31.8 mm	5 mm	11 mm	DP x 1 14#	Auto lubricated	Auto lubricated hook for trimmer	Yes	Speed adjustment motor	N/A	N/A
GC0518-H-D	3500 rpm	0 - 5 mm	33 mm	5 mm	11 mm	DP x 5 18#	Auto lubricated	Auto lubricated hook for trimmer	Yes	Speed adjustment motor	N/A	N/A
GC0518-B-D	3000 rpm	0 - 5 mm	35 mm	5 mm	11 mm	DP x 5 22 #	Auto lubricated	Auto lubricated large hook for trimmer	Yes	Speed adjustment motor	N/A	N/A
GC0518-MC	4000 rpm	0 - 4 mm	31.8 mm	4 mm	10 mm	DB x 1 11#-14#	Auto lubricated	Auto lubricated hook	N/A	370W Clutch motor	58 mm	4.8, 3.2, 4, 6.4 mm Standard 4.8 Special 3.2, 4, 6.4 mm
GC0518-MC-D	4000 rpm	0 - 4 mm	31.8 mm	4 mm	10 mm	DB x 1 11#-14#	Auto lubricated	Auto lubricated hook for trimming	Yes	Speed adjustment motor	58 mm	4.8, 3.2, 4, 6.4 mm Standard 4.8 Special 3.2, 4, 6.4 mm
