Consew Premier 1255RB Lockstitch Machine with Assembled Table and Servo Motor

  • Image 1
Price:
$1,379.40
SKU:
P3113SW54074
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

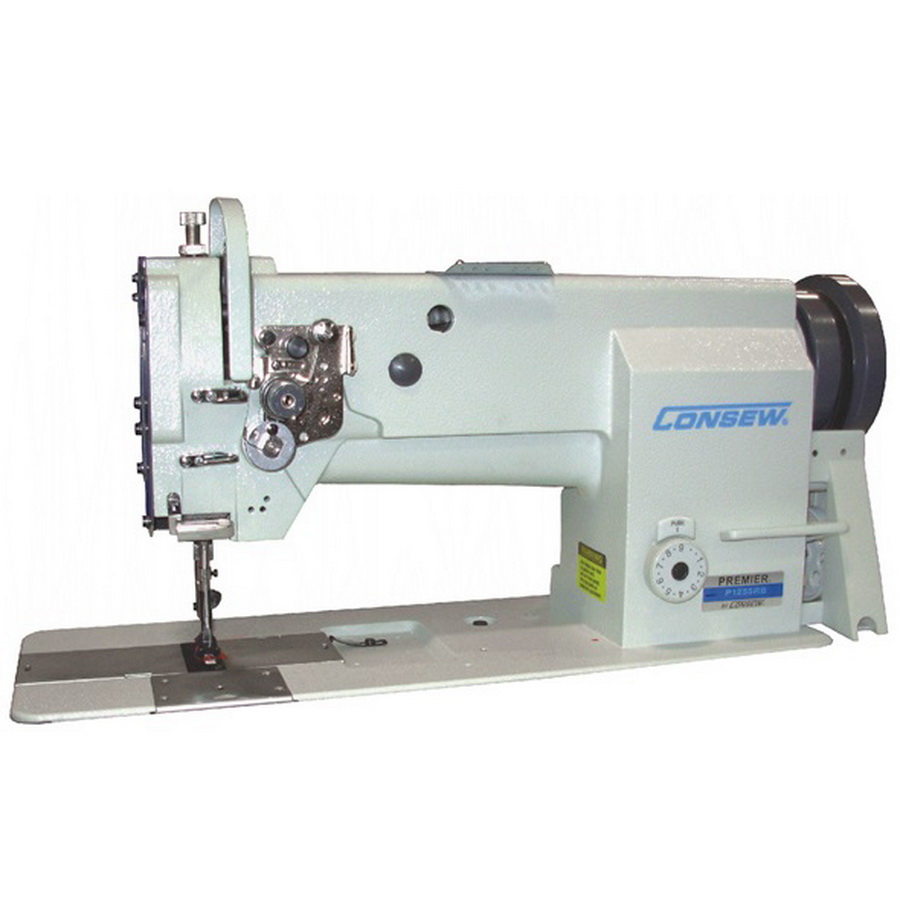

Consew Premier 1255RB Lockstitch Machine with Assembled Table and Servo Motor

The Consew P1255RB Sewing Machine contains a variety of features the include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine.

More Information

FEATURES

  • Large Vertical Axis Automatically Oiled Hook
  • Oil Pump System with Adjustable Oil Flow
  • Upper Oil Glass Sight
  • Barrel-type, Locking Stitch Regulator
  • Large Top-Loaded Bobbin
  • Quick Tension Release
  • Safety Clutch
  • Reverse
  • Locking Slide Plate for easy bobbin access
  • Adjustable Take-Up Thread Guide for thread loop timing

SPECIFICATIONS

  • Speed, Max. (S.P.M.): 2600 (*Speed depends on thread, material and operation)
  • Presser Foot Lift: By Hand - 5/16" (8 mm)/By Knee - 33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Max: 2.8 s.p.i. (9 mm)
  • Work Space: 9-7/8” x 3-15/16" (250 x 100 mm)
  • Needle: 135 x 17e

Specifications

CATEGORYSPECIFICATION
Number Of Needles 1 (Single)
Workspace Standard Workspace
Standard Or Full Function Standard Functions
Stitch Type 301

TABLE & CLUTCH MOTOR

This Package includes a Fully Assembled Table and a Servo Motor.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

SOME OTHER ADVANTAGES OF THE SERVO MOTOR INCLUDE:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed servo motor.

Warranty Information

5 YEAR LIMITED WARRANTY
