Consew CM795 2 Two Needle, 5 Thread Overlock with Assembled Table and Servo Motor

  • Image 1
Price:
$839.40
SKU:
P3113SW4280
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

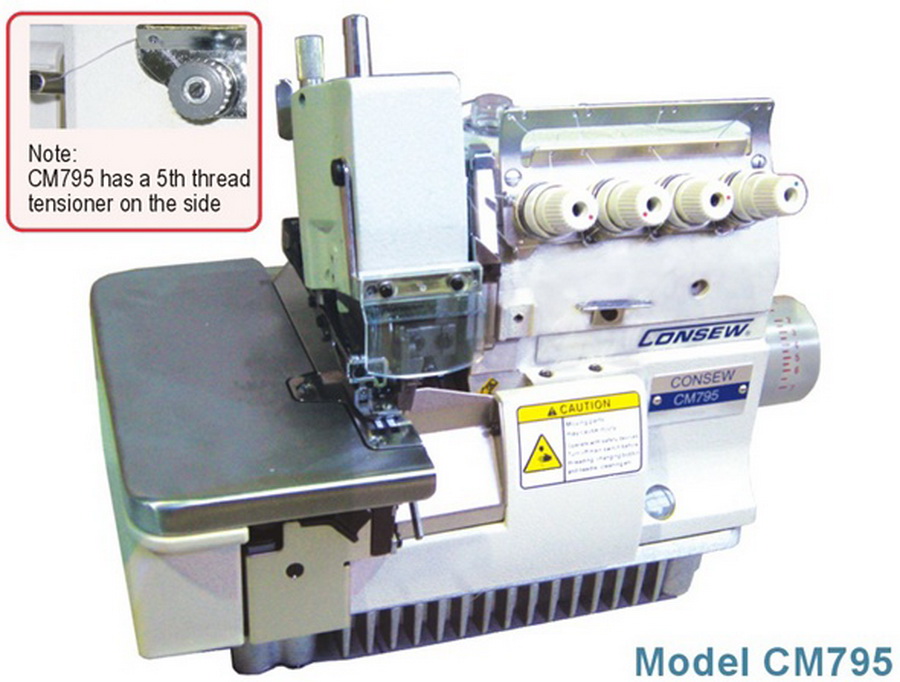

Consew CM795-2 Two Needle, 5 Thread Overlock

WITH ASSEMBLED TABLE AND SERVO MOTOR

The Consew CM795-2 5-thread overlock machine contains a variety of features that include, but are not limited to: Two Needle, 5 Thread, High Speed Overlock Machine, For overlock sewing of medium to heavyweight materials with a safety stitch. With Fully Automatic Lubrication, Differential Feed, Pushbutton Stitch Regulator.

Applications

  • True Safety Stitch - suitable for sewing products such as men's, ladies' and children's wear, especially coats for children and women. Designed for general seaming on woven fabrics. Also suitable for edging vinyl, canvas and upholstery fabrics.
  • In additon, the CM795 will do the stiches that the CM793 can do.

Specifications

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Differential
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Stitch Type: True Safety Stitch
  • Speed, Max (S.P.M.): 6500
  • Presser Foot Lift: 5.5 mm
  • Stitch Length: 3.8 mm
  • Needle Used: DC x 27 size 14
  • Standard Distance Between Needles: 2 mm standard
  • Differential Ratio: 1 : 0.7 ~ 1.7
  • Number of Threads: 4/5

Features

  • Speed, Max. up to 6500 s.p.m. (See machine specifications below)
  • Fully automatic lubrication with visual flow controls
  • Lubricating oil continuously filtered by replaceable filter
  • External cooling of oil supply
  • Differential feed
  • Push-button stitch regulator
  • Intermittent action possible
  • Standard type DC-27 needles
  • Reduced noise and vibration when operating at high speeds
  • Available Options: ET - Electric thread trimmer / P3D - Pneumatic thread trimmer / C - Back tacking

TABLE & SERVO MOTOR

This Package includes a Fully Assembled Table and a Servo Motor. The motor can be upgraded to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

SOME OTHER ADVANTAGES OF THE SERVO MOTOR INCLUDE:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a servo motor.

Warranty Information

5 YEAR LIMITED WARRANTY
