Consew 206RB 5 Walking Foot Upholstery Machine

  • Image 1
Price:
$1,139.40
SKU:
P3113SW22946
Brand:
Condition:
New
Availability:
In Stock
Quantity:


Product Description

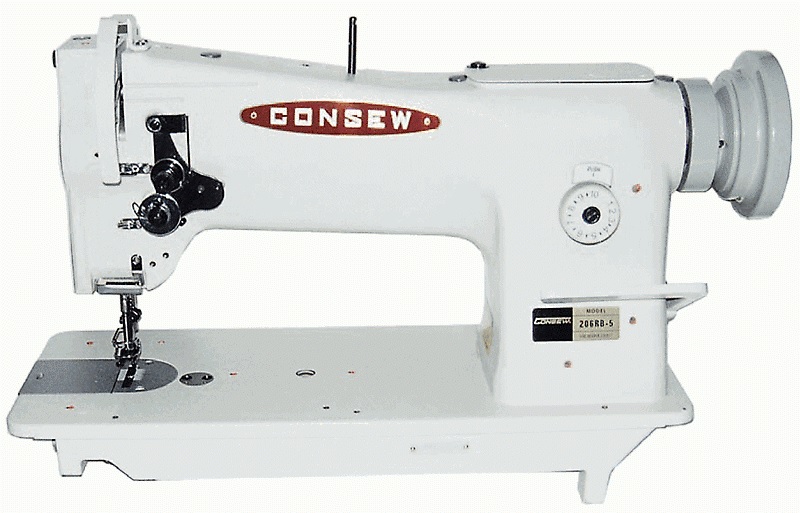

Consew 206RB-5 Walking Foot Upholstery Machine

TABLE & MOTOR (TABLE COMES ASSEMBLED)

This Consew walking food upholstery sewing machine is designed for sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.

Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

THIS PACKAGE INCLUDES A FULLY ASSEMBLED TABLE AND A CLUTCH MOTOR

The motor can be upgraded to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

Features

  • Extra long stitch - 21/2 S.P.I. (10mm)
  • Large Bobbin. Bobbin can be changed without removing object being sewn
  • Thread release finger (for heavy thread)
  • High presser foot lift - 9/16" (14mm)
  • Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
  • All gear driven hook mechanism. Large horizontal axis hook
  • Safety clutch with push-button re-engagement
  • Adjustable reverse stitching can be same length as forward stitch
  • Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
  • Walking feet, needles and other attachments interchangeable with Consew models 226R-2, 255RB-2
  • Needle plate, foot and feed dog can be changed for special operations
  • Standard attachments easily installed
  • Compound feed, walking foot mechanism insures even feeding of material
  • Locking stitch regulator prevents changes in stitch length from vibration

Specifications

  • Single Needle
  • Walking Foot
  • Standard Workspace
  • Standard Functions
  • Max Speed (Stitches Per Minute) 3300
  • Clearence Under Presser Foot 9/16" (14mm)
  • Stitch Length 2 1/2 s.p.i. (10mm)
  • Large Hook
  • Work Space 10 5/16" (258mm)
  • Needle 135 x 17
  • Bobbin Pre-Wound M
  • Bed Size 7" 18 7/8" (178mm x 480mm)
  • Stitch Type 301
  • Total Carton Size 23" x 10" x 22"
  • Needle Bar Stroke 1 5/16" (33mm)
  • Hook 8033

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

SOME OTHER ADVANTAGES OF THE SERVO MOTOR INCLUDE:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

The Consew 206RB-5 package includes a fixed-speed clutch motor. Upgrade to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

Warranty Information

5 YEAR LIMITED WARRANTY
